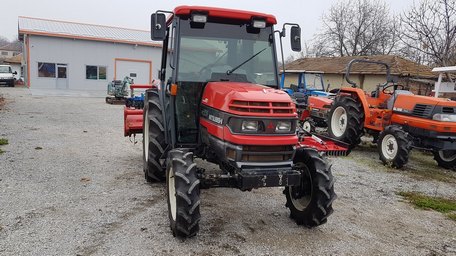

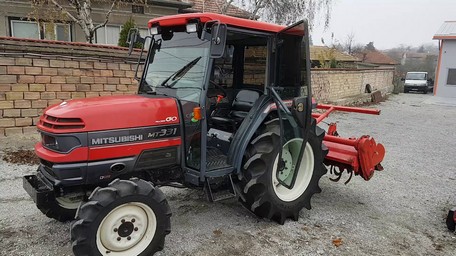

Mitsubishi MT331

Production: 1999 - 2003

Production
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor

Mitsubishi MT331 Power
Engine:	32.6 hp 24.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmission:	16-speed

Tractor hitch
Rear Type:	JISI
Rear lift:	3968 lbs 1799 kg

Power Take-off (PTO)
Rear PTO:	540 (1.375)

Electrical
Ground:	negative

Engine Detail
Mitsubishi S4L
diesel
4-cylinder
liquid-cooled
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.07x3.09 inches 78 x 78 mm
Power:	32.6 hp 24.3 kW
Rated RPM:	2800
Starter:	electric
Starter volts:	12

Transmission
Gears:	16 forward and reverse
Four gears in four ranges with left-hand shuttle shift.

Dimensions
Wheelbase:	69.7 inches 177 cm
Length:	123.6 inches 313 cm
Width:	56.9 inches 144 cm
Height (ROPS):	78.5 inches 199 cm
ROPS Weight:	3020 lbs 1369 kg
Cab Weight:	3351 lbs 1520 kg
Ground clearance:	13.6 inches 34 cm
Front tread:	43.9 inches 111 cm
Rear tread:	43.7 to 55.5 inches 110 to 140 cm
