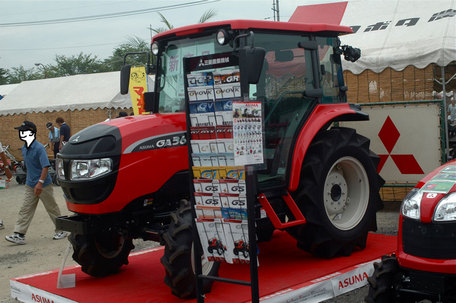

Mitsubishi GA36

Production: 2008 - 2016

Production
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor

Variants
GA36:	wheeled tractor
GAK36:	half-track

Mitsubishi GA36 Power
Engine:	36.1 hp 26.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	24-speed
32-speed

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	3943 lbs 1788 kg

Power Take-off (PTO)
Rear RPM:	588/776/987/1258 (1.375)

Electrical
Ground:	negative
Battery CCA:	630
Battery volts:	12
Battery AH:	68

Engine Detail
Iseki E3CG
diesel
3-cylinder
liquid-cooled
Displacement:	100.5 ci 1.6 L
Bore/Stroke:	3.43x3.62 inches 87 x 92 mm
Power:	36.1 hp 26.9 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	68.1 inches 172 cm
Length:	128.7 inches 326 cm
Width:	59.8 inches 151 cm
Height (ROPS):	97.4 inches 247 cm
Height (cab):	83.1 inches 211 cm
ROPS Weight:	3373 lbs 1529 kg
Cab Weight:	3748 lbs 1700 kg
Ground clearance:	14 inches 35 cm
Front tread:	43.9 inches 111 cm
Rear tread:	43.7 to 55.5 inches 110 to 140 cm
