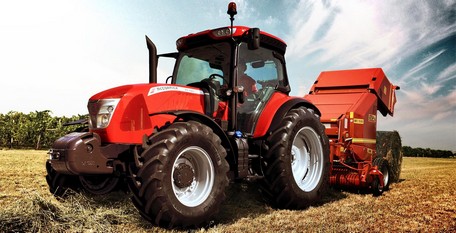

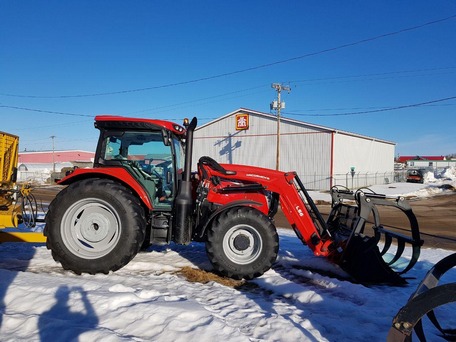

McCormick Intl X6.430
Contents:
Production | |
| Manufacturer: | McCormick Intl (a part of Argo) |
McCormick Intl X6.430 Power | |
| Engine: | 121 hp 90.2 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | electro-hydraulic |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. Climate control and air-suspended seat available (standard on LS). Mechanical cab suspension available on LS. |
| Transmissions: | 36-speed three-speed power shift |
| 48-speed creeper | |
| continuously variable transmission (CVT) | |
Hydraulics | |
| STD Type: | open center |
| LS Type: | closed center |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 3 to 5 |
| STD Pump flow: | 17.4 gpm 65.9 lpm |
| LS Pump flow: | 29.1 gpm 110.1 lpm |
| Steering flow: | 10 gpm 37.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift: | 11905 lbs 5400 kg |
| Front Hitch: | II |
| Front lift: | 5512 lbs 2500 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/540E |
| 540/1000 | |
| 540/540E/1000/1000E | |
| Front PTO: | independent*Optional |
| Clutch: | electro-hydraulic |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| BetaPower | |
| turbocharged air-to-air cooled diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled | |
| Displacement: | 274.6 ci 4.5 L |
| Bore/Stroke: | 4.09x5.20 inches 104 x 132 mm |
| Emissions: | Interim Tier IV |
| Emission control: | selective catalytic reduction (SCR) |
| Power: | 121 hp 90.2 kW |
| Maximum Power: | 133 hp 99.2 kW |
| Fuel system: | electronic high pressure common rail |
| Rated RPM: | 2200 |
| Torque: | 402 lb-ft 545.1 Nm |
| Torque RPM: | 1400 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 100 inches 254 cm |
| Length: | 173.2 inches 439 cm |
| Width: | 80.9 inches 205 cm *Minimum |
| Height (cab): | 110.4 inches 280 cm |
| Weight: | 10362 lbs 4700 kg |
| Ground clearance: | 16.5 inches 41 cm |
| Front axle: | Hydraulic suspension |
