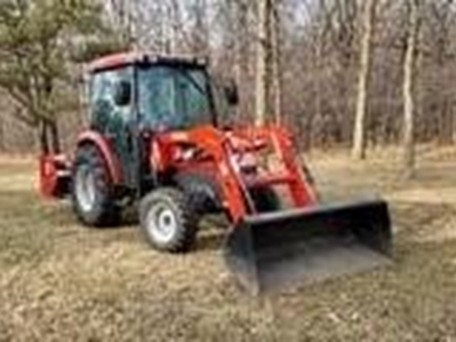

McCormick Intl X10.50H

Production: 2011 - 2014

Production
Distributor:	McCormick Intl
Manufacturer:	Daedong
Type:	Compact Utility tractor
Factory:	South Korea

Variants

hydrostatic

gear

McCormick Intl X10.50H Power
Engine (gross):	49 hp 36.5 kW
PTO (claimed):	37.5 hp 28.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional with air-conditioning and CD player.
Transmission:	hydrostatic

Hydraulics
Type:	gear pump
Valves:	1 or 2
Pump flow:	16.8 gpm 63.6 lpm

Tractor hitch
Rear Type:	I
Control:	position and draft control
Rear lift (at 24"/610mm):	2,493 lbs 1130 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Daedong 4B243
diesel
liquid-cooled
Displacement:	148.59 ci 2.4 L
Power (gross):	49 hp 36.5 kW
Fuel system:	indirect injection
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	inifnite forward and infinite reverse

Dimensions
Wheelbase:	74 inches 187 cm
Length:	134.2 inches 340 cm
Width:	63.9 inches 162 cm
Height (ROPS):	96.2 inches 244 cm
Height (cab):	97.8 inches 248 cm
Weight:	3,935 lbs 1784 kg (ROPS)
4,365 lbs 1979 kg (cab)
Ground clearance:	14.7 inches 37 cm
Front tread:	49.1 inches 124 cm
Rear tread:	49.7 to 58.6 inches 126 to 148 cm
