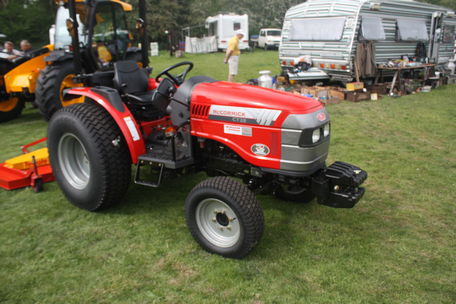

McCormick Intl CT28

Production: 2007 - 2010

Production
Manufacturer:	McCormick Intl (a part of Argo)
Type:	Compact Utility tractor
Original price:	$24,300 (2008 )

Variants
CT28:	gear
CT28HST:	hydrostatic

McCormick Intl CT28 Power
Engine (gross):	28 hp 20.9 kW
Gear PTO (claimed):	23 hp 17.2 kW
Hydro PTO (claimed):	22 hp 16.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmissions:	12-speed synchro shuttle
hydrostatic

Hydraulics
Valves:	2
Pump flow:	8 gpm 30.3 lpm
Steering flow:	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2620 lbs 1188 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid RPM:	2100

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Charging volts:	12
Battery volts:	12

Engine Detail
Mitsubishi
diesel
4-cylinder
liquid-cooled
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.07x3.09 inches 78 x 78 mm
Power (gross):	28 hp 20.9 kW
Air cleaner:	dual dry element
Pre-heating:	glow plugs
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	65 inches 165 cm
Length:	118 inches 299 cm
Width:	66.5 inches 168 cm
Height (ROPS):	89.8 inches 228 cm
Weight:	2645 lbs 1199 kg
Ground clearance:	13 inches 33 cm
Front tread:	44.8 inches 113 cm
Rear tread:	50.5 inches 128 cm
