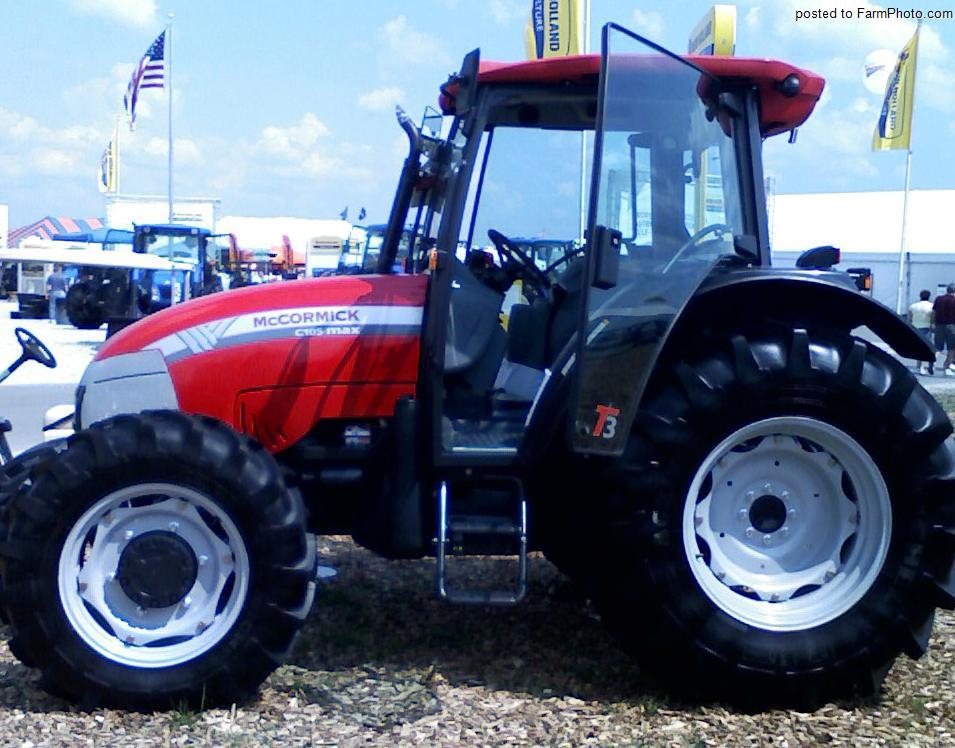

McCormick Intl C105 Max

Production: 2004 - 2009

Production
Manufacturer:	McCormick Intl (a part of Argo)
Type:	Utility tractor
Factory:	Doncaster, England

Variants

utility

high-crop

McCormick Intl C105 Max Power
Engine:	98.6 hp 73.5 kW
PTO (claimed):	88 hp 65.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	12-speed
24-speed

Hydraulics
Type:	open center
Pressure:	2611 psi 180.0 bar
Valves:	2 to 4
Pump flow:	13.8 gpm 52.2 lpm
Total flow:	21.7 gpm 82.1 lpm
Steering flow:	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift (at ends):	5732 lbs 2600 kg
8157 lbs 3700 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750
540/1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Perkins 1104C-44T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268 ci 4.4 L
Bore/Stroke:	4.134x5.00 inches 105 x 127 mm
Emissions:	Tier II
Power:	98.6 hp 73.5 kW
Rated RPM:	2200
Torque:	268.5 lb-ft 364.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	93.1 inches 236 cm
4WD Wheelbase:	92.1 inches 233 cm
Length:	163.8 inches 416 cm
Width:	69.3 inches 176 cm *Minimum width
Weight:	6,813 lbs 3090 kg (2WD)
7,343 lbs 3330 kg (4WD)
Front tread:	57.3 to 76.3 inches 145 to 193 cm
Rear tread:	50.9 to 79.2 inches 129 to 201 cm
