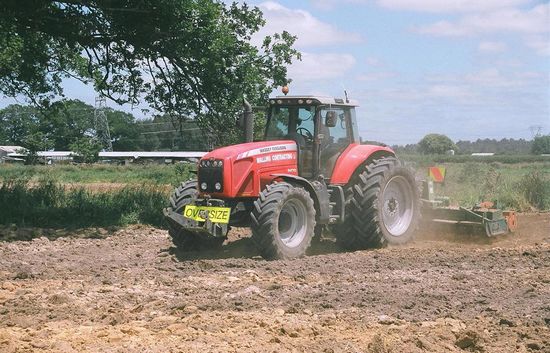

Massey Ferguson 8470

Production: 2004 - 2007

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Germany

Massey Ferguson 8470 Power
Engine:	260 hp 193.9 kW
PTO (claimed):	220 hp 164.1 kW
Drawbar (tested):	200.5 hp 149.5 kW
PTO (tested):	249.3 hp 185.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	inboard planetary
Steering:	hydrostatic power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	42-speed power shift
continuously variable transmission

Hydraulics
Type:	closed center PFC
Pressure:	2900 psi 200.0 bar
Valves:	4 or 5
Total flow:	39 gpm 147.6 lpm

Tractor hitch
Rear Type:	III
Rear lift (at 24"/610mm):	14,400 lbs 6531 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540E/1000 (optional)

Electrical
Ground:	negative

Engine Detail
Sisu
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	513.8 ci 8.4 L
Bore/Stroke:	4.370x5.709 inches 111 x 145 mm
Power:	260 hp 193.9 kW
Air cleaner:	dual paper elements
Compression:	17.5:1
Rated RPM:	2200
Starter volts:	12

Dimensions
Wheelbase:	121 inches 307 cm
Length:	206 inches 523 cm
Height:	122 inches 309 cm
