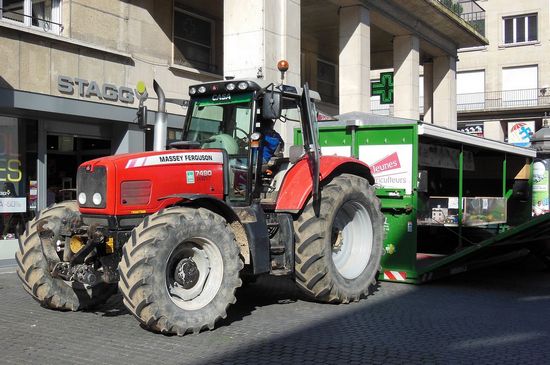

Massey Ferguson 7490

Production: 2004 - 2012

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Beauvais, France

Variants

Dyna-6

Dyna-VT

Massey Ferguson 7490 Power
Engine:	168 hp 125.3 kW
PTO (claimed):	140 hp 104.4 kW
Drawbar (tested):	115.1 hp 85.8 kW
PTO (tested):	154.4 hp 115.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard.
Transmission:	21-speed

Hydraulics
Type:	closed center
Pressure:	2900 psi 200.0 bar
Valves:	3 or 4
Total flow:	29 gpm 109.8 lpm

Tractor hitch
Rear Type:	II/IIIN
Rear lift (at 24"/610mm):	14,283 lbs 6478 kg
Front Hitch:	optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000

Electrical
Charging amps:	120
150 (optional)
Batteries:	2
Battery CCA:	505

Engine Detail
Sisu 66CTA
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	402.5 ci 6.6 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	168 hp 125.3 kW
Air cleaner:	dual paper elements
Compression:	18.5:1
Rated RPM:	2200
Starter volts:	12

Transmission
Transmission:	DynaStep
Gears:	21 forward and 18 reverse
Oil capacity:	13.2 qts 12.5 L

Dimensions
Wheelbase:	118.7 inches 301 cm
Length:	205.9 inches 522 cm
Width:	80 inches 203 cm
Height:	122 inches 309 cm
Operating weight:	15,145 lbs 6869 kg
Ballasted weight:	16,865 lbs 7649 kg
Ground clearance:	14 inches 35 cm
