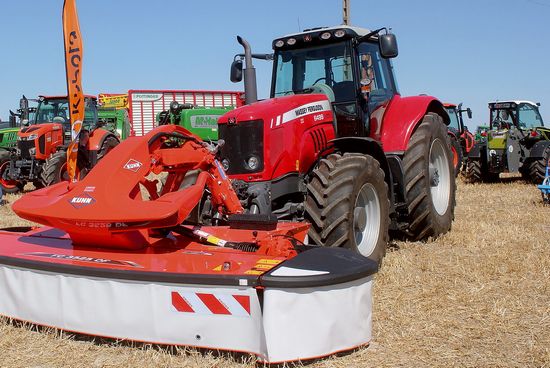

Massey Ferguson 6499

Production: 2008 - 2012

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor

Variants

Dyna-6

Dyna-VT

Massey Ferguson 6499 Power
Engine (gross):	215 hp 160.3 kW
PTO (claimed):	180 hp 134.2 kW
Drawbar (tested):	167.0 hp 124.5 kW
PTO (tested):	216.2 hp 161.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	24-speed partial power shift

Hydraulics
Type:	closed center pressure flow compensating (PFC)
Pressure:	2900 psi 200.0 bar
Valves:	3 to 5
Total flow:	29 gpm 109.8 lpm
39 gpm 147.6 lpm *Optional

Tractor hitch
Rear Type:	III/IIIN
Control:	lower-link draft sensing
Rear lift (at 24"/610mm):	15,700 lbs 7121 kg
Front Hitch:	optional
Front lift:	8,800 lbs 3991 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540/540E/1000*Optional
Front PTO:	independent*Optional
Front RPM:	1000 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	150
Batteries:	2
Battery CCA:	600
Battery volts:	12

Engine Detail
SisuDiesel 74 CTA
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	449 ci 7.4 L
Bore/Stroke:	4.252x5.276 inches 108 x 134 mm
Emissions:	Tier III
Power (gross):	215 hp 160.3 kW
Air cleaner:	dry
Compression:	17.5:1
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Transmission:	Dyna-6
Type:	partial power shift
Gears:	24 forward and reverse
Clutch:	hydraulic wet disc
Six power shift gears in four ranges.

Dimensions
Wheelbase:	118 inches 299 cm
Length:	214 inches 543 cm
Width:	98.2 inches 249 cm
Height (cab):	120 inches 304 cm
Clearance (drawbar):	17.8 inches 45 cm
Front tread:	60 to 88 inches 152 to 223 cm
Rear tread:	60 to 119 inches 152 to 302 cm
