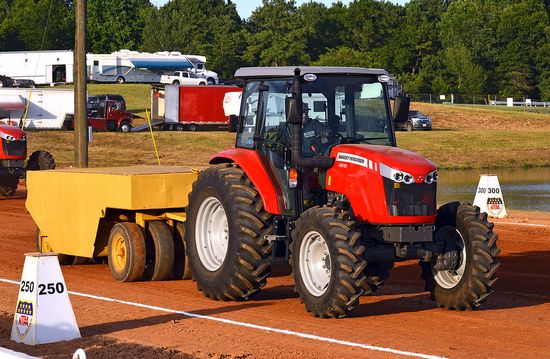

Massey Ferguson 4609
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson |
| Type: | Utility tractor |
| Original price: | $35,536 (2015 ROPS 2WD ) |
| Original price: | $49,973 (2015 Cab 4WD ) |
Massey Ferguson 4609 Power | |
| Engine (gross): | 90 hp 67.1 kW |
| Engine (net): | 85 hp 63.4 kW |
| PTO (claimed): | 72 hp 53.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | internal planetary |
| Differential lock: | mechanical via foot pedal |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. Optional cab with air-conditioning. |
| Transmission: | 12-speed power shuttle |
Hydraulics | |
| Type: | open center tandem pump |
| Rear valves: | 1 to 3 |
| SCV flow: | 17.1 gpm 64.7 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift (at 24"/610mm): | 3417 lbs 1549 kg |
| Rear Arms: | extendable ball ends |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electronic |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@1993 1000@2178 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 95 |
| Battery volts: | 12 |
Engine Detail | |
| AGCO Power 33 AWIC | |
| turbocharged intercooled diesel | |
| 3-cylinder 16-valve | |
| Displacement: | 201 ci 3.3 L |
| Bore/Stroke: | 4.252x4.724 inches 108 x 120 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | exhaust gas recirculation (EGR) and diesel oxidation catalyst (DOC) |
| Power (gross): | 90 hp 67.1 kW |
| Fuel system: | high pressure common rail (HPCR) direct injection |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | power shuttle |
| Gears: | 12 forward and reverse |
| Six synchronized gears in two ranges with left-hand power shuttle. | |
Dimensions | |
| Wheelbase: | 88.5 inches 224 cm |
| Length: | 152.6 inches 387 cm |
| Width: | 78.7 inches 199 cm |
| Height (cab): | 102.4 inches 260 cm |
| 4WD ROPS Shiping weight: | 6394 lbs 2900 kg |
| 4WD Cab Shiping weight: | 6835 lbs 3100 kg |
| Rear axle: | Flange |
