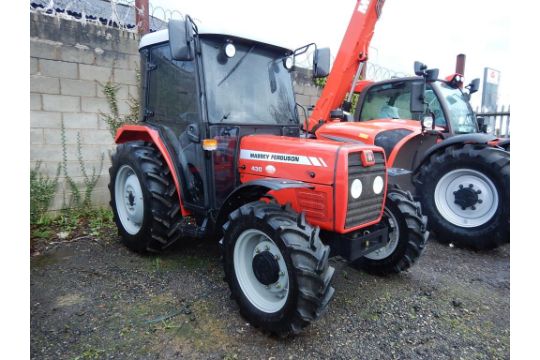

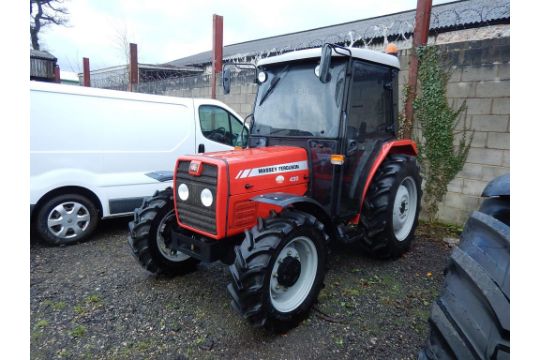

Massey Ferguson 430

Production: 2004 - 2008

Production
Manufacturer:	Massey Ferguson
Type:	Utility tractor

Massey Ferguson 430 Power
Engine:	74 hp 55.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Trailer brakes:	hydraulic (optional)
Cab:	Two-post foldable ROPS. Cab optional.
Transmission:	8-speed synchro shuttle

Capacity
Fuel:	12.7 gal 48.1 L
Hydraulic system:	11.1 gal 42.0 L

Hydraulics
Capacity:	11.1 gal 42.0 L
Pressure:	2538 psi 175.0 bar
Valves:	1 or 2
Pump flow:	13.9 gpm 52.6 lpm

Tractor hitch
Rear Type:	2/1
Control:	draft, position and response control
Rear lift (at ends):	3,946 lbs 1789 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@1789

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins 1103C 33T
turbocharged diesel
3-cylinder
liquid-cooled inline
Displacement:	201.4 ci 3.3 L
Bore/Stroke:	4.134x5.00 inches 105 x 127 mm
Power:	74 hp 55.2 kW
Air cleaner:	dual dry element
Rated RPM:	2200
Torque:	214.6 lb-ft 291.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Type:	synchro shuttle
Gears:	8 forward and reverse
Clutch:	305mm cerametalic

Dimensions
2WD Wheelbase:	81.1 inches 205 cm
4WD Wheelbase:	83.5 inches 212 cm
2WD Length:	138.2 inches 351 cm
4WD Length:	140.9 inches 357 cm
Height (ROPS):	93.7 inches 237 cm
Height (cab):	93.5 inches 237 cm
