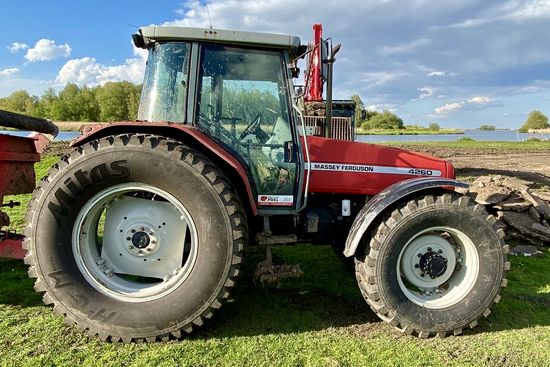

Massey Ferguson 4260
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson (a part of AGCO) |
| Type: | Utility tractor |
Massey Ferguson 4260 Power | |
| Engine: | 100 hp 74.6 kW |
| PTO (claimed): | 93.5 hp 69.7 kW |
| Drawbar (tested): | 78.3 hp 58.4 kW |
| PTO (tested): | 94.9 hp 70.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| 4WD Differential lock: | electro-hydraulic front and rear |
| 2WD Differential lock: | electro-hydraulic rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic |
| Cab: | Cab standard with heater. Optional air-conditioning. Available Versa cab with reversible seating position. |
| Transmissions: | 12-speed mechanical shuttle |
| 18-speed two-speed power shift | |
| 12-speed power shuttle | |
| 24-speed power shuttle | |
Capacity | |
| Fuel: | 37.8 gal 143.1 L |
| Hydraulic system: | 13.2 gal 50.0 L |
Hydraulics | |
| Capacity: | 13.2 gal 50.0 L |
| Pressure: | 3046 psi 210.0 bar |
| Valves: | 2 to 4 |
| Pump flow: | 10 gpm 37.9 lpm |
| Total flow: | 17.4 gpm 65.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position control and mechanical draft control, electronic draft control optional |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@1902 1000@2000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| Perkins 1006 | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 365.2 ci 6.0 L |
| Bore/Stroke: | 3.94x5.00 inches 100 x 127 mm |
| Power: | 100 hp 74.6 kW |
| Fuel system: | direct injection |
| Air cleaner: | dry element |
| Rated RPM: | 2200 |
| Torque: | 286.2 lb-ft 388.1 Nm |
| Torque RPM: | 1200 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 29.6 qts 28.0 L |
Dimensions | |
| Wheelbase: | 102.8 inches 261 cm |
| Length: | 170.1 inches 432 cm |
| Width: | 81.1 inches 205 cm *Minimum width |
| Height (cab): | 106.3 inches 270 cm |
| 2WD Weight: | 8534 lbs 3871 kg |
| 4WD Weight: | 9050 lbs 4105 kg |
| Ground clearance: | 17.4 inches 44 cm |
| 2WD Front tread: | 57.1 to 85.4 inches 145 to 216 cm |
| 4WD Front tread: | 61.8 to 80.7 inches 156 to 204 cm |
| Rear tread: | 60.2 to 88.2 inches 152 to 224 cm |
