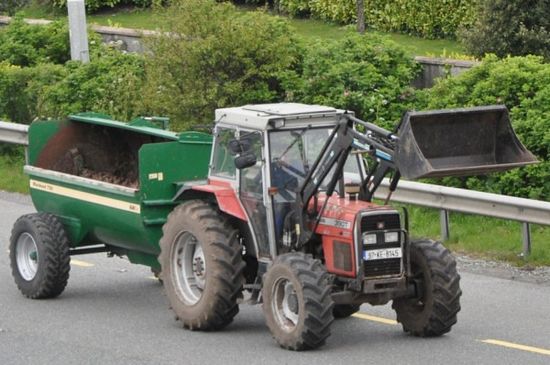

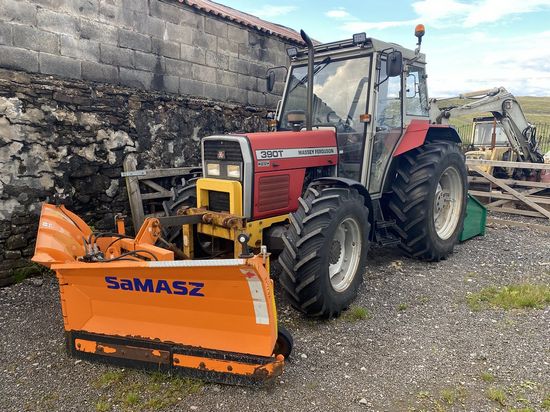

Massey Ferguson 390T

Production: 1989 - 1997

Production
Manufacturer:	Massey Ferguson
Factory:	Coventry, England
Original price:	$34,000 (1997)

Massey Ferguson 390T Power
Engine:	95 hp 70.8 kW
PTO (claimed):	80 hp 59.7 kW
Drawbar (tested):	65.2 hp 48.6 kW
PTO (tested):	80.2 hp 59.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Transmission:	12-speed

Capacity
Fuel:	28.5 gal 107.9 L
Hydraulic system:	12.5 gal 47.3 L

Hydraulics
Type:	open
Capacity:	12.5 gal 47.3 L
Valves:	2
Pump flow:	16.7 gpm 63.2 lpm

Tractor hitch
Rear Type:	II
Rear lift:	6,747 lbs 3060 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540,1000

Electrical
Ground:	negative

Engine Detail
Perkins
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	236 ci 3.9 L
Bore/Stroke:	3.88x5.00 inches 99 x 127 mm
Power:	95 hp 70.8 kW
Rated RPM:	2200
Coolant capacity:	16 qts 15.1 L

Transmission
Gears:	12 forward and 4 reverse

Dimensions
Wheelbase:	84.1 inches 213 cm
Length:	148 inches 375 cm
Height:	101.2 inches 257 cm
Weight:	6,400 lbs 2903 kg
