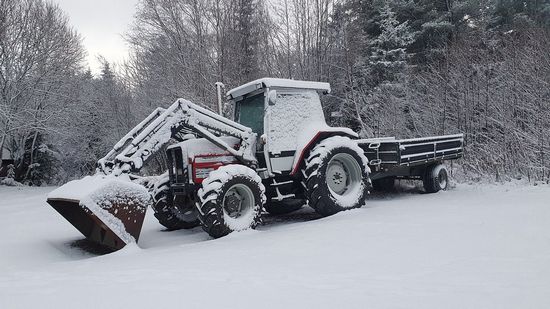

Massey Ferguson 3050

Production: 1986 - 1990

Production
Manufacturer:	Massey Ferguson
Original price:	$30,500 (1990 )

Massey Ferguson 3050 Power
Engine:	68 hp 50.7 kW
PTO (claimed):	60 hp 44.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab with optional air-conditioning.
Transmissions:	16-speed fully synchronized
32-speed

Capacity
Fuel:	39 gal 147.6 L
Hydraulic system:	15.9 gal 60.2 L

Hydraulics
Type:	open
Capacity:	15.9 gal 60.2 L
Pressure:	2610 psi 180.0 bar
Valves:	2 to 4
Pump flow:	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	5,100 lbs 2313 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	55
Batteries:	2
Battery CCA:	420
Battery volts:	12

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	236 ci 3.9 L
Power:	68 hp 50.7 kW
Rated RPM:	2200
Starter volts:	12

Dimensions
Wheelbase:	93.3 inches 236 cm
2WD Length:	157 inches 398 cm
4WD Length:	158 inches 401 cm
Height (cab):	103 inches 261 cm
Weight:	8,558 lbs 3881 kg (2WD)
9,165 lbs 4157 kg (4WD)
