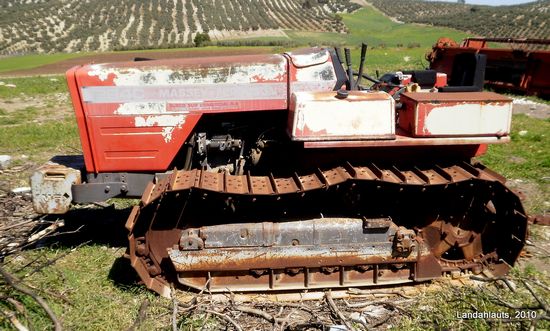

Massey Ferguson 294C
Contents:
Production | |
| Manufacturer: | Massey Ferguson |
| Type: | Agricultural Crawler tractor |
Massey Ferguson 294C Power | |
| Engine: | 74 hp 55.2 kW |
Mechanical | |
| Chassis: | crawler |
| Final drives: | bull gear |
| Steering: | mechanical dry clutches |
| Brakes: | mechanical dry band |
| Cab: | Open operator station. |
| Transmission: | 8-speed gear |
Hydraulics | |
| Type: | open center |
| Pressure: | 2148 psi 148.1 bar |
| Pump flow: | 9.4 gpm 35.6 lpm (hitch pump) |
| 12.2 gpm 46.2 lpm (aux pump) | |
Tractor hitch | |
| Rear Type: | II |
| Control: | position, response, and draft control |
| Rear lift (at ends): | 5289 lbs 2399 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@1944 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 45 |
| Battery volts: | 12 |
| Battery AH: | 100 |
Engine Detail | |
| Perkins A4.248 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 248 ci 4.1 L |
| Bore/Stroke: | 3.975x5.0 inches 101 x 127 mm |
| Power: | 74 hp 55.2 kW |
| Fuel system: | direct injection |
| Rated RPM: | 2100 |
| Torque: | 213 lb-ft 288.8 Nm |
| Torque RPM: | 1400 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 2.9 hp 2.2 kW |
| Oil capacity: | 7.5 qts 7.1 L |
| Coolant capacity: | 15.9 qts 15.0 L |
Transmission | |
| Type: | gear |
| Gears: | 8 forward and 4 reverse |
| Clutch: | 280mm disc |
| Oil capacity: | 14.8 qts 14.0 L |
Dimensions | |
| Length: | 122 inches 309 cm |
| Width: | 67.9 inches 172 cm |
| Height (hood): | 52.5 inches 133 cm |
| Height (exhaust): | 83.5 inches 212 cm |
| Weight: | 8633 lbs 3915 kg |
| Ground clearance: | 13.4 inches 34 cm |
| Gauge: | 52.2 inches 132 cm |
