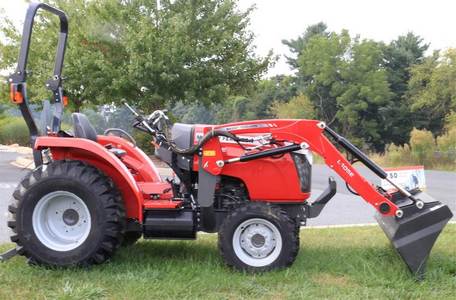

Massey Ferguson 1726E

Production: 2013

Production
Manufacturer:	Massey Ferguson (a part of AGCO)
Type:	Compact Utility tractor

Massey Ferguson 1726E Power
Engine:	24 hp 17.9 kW
Gear PTO (claimed):	20.4 hp 15.2 kW
Hydro PTO (claimed):	19.2 hp 14.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	bull gear
Differential lock:	rear standard
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmissions:	9-speed gear
hydrostatic

Hydraulics
Type:	open center gear pump
SCV flow:	6.7 gpm 25.4 lpm
Total flow:	10.5 gpm 39.7 lpm
Steering flow:	3.8 gpm 14.4 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2205 lbs 1000 kg
Rear lift (at 24"/610mm):	1598 lbs 724 kg

Power Take-off (PTO)
Rear PTO:	transmission
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Shibaura N843T-F
diesel
3-cylinder
liquid-cooled
Displacement:	91.3 ci 1.5 L
Bore/Stroke:	3.307x3.543 inches 84 x 90 mm
Emissions:	Tier IV
Emission control:	internal exhaust-gas recirculatio (iEGR)
Power:	24 hp 17.9 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	65.9 inches 167 cm
Length:	116 inches 294 cm
Width:	52.4 inches 133 cm
Height (ROPS):	97.6 inches 247 cm
63.8 inches 162 cm (folded)
Weight:	2600 lbs 1179 kg (gear)
2657 lbs 1205 kg (hydro)
