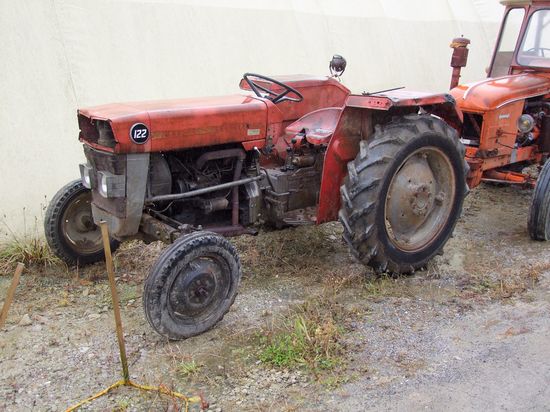

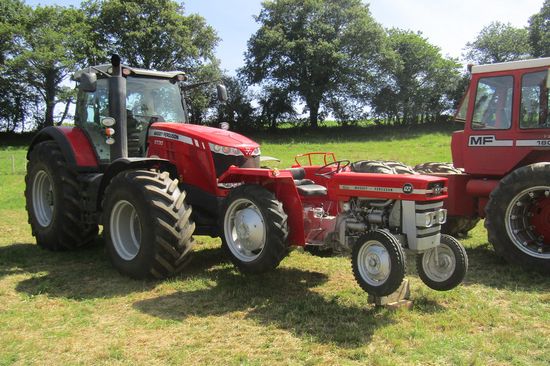

Massey Ferguson 122

Production: 1965

Production
Manufacturer:	Massey Ferguson
Type:	Utility tractor

Massey Ferguson 122 Power
Engine:	24 hp 17.9 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Steering:	manual
Brakes:	mechanical disc
Cab:	Open operator station.
Transmission:	8-speed gear

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2231 lbs 1011 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540 (1.375)
Engine RPM:	540@1890

Engine Detail
Perkins 4.99
diesel
4-cylinder
liquid-cooled
Displacement:	99 ci 1.6 L
Bore/Stroke:	3.00x3.50 inches 76 x 89 mm
Power:	24 hp 17.9 kW
Air cleaner:	oil bath
Compression:	20:1
Rated RPM:	2000
Torque:	63.7 lb-ft 86.4 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12
Oil capacity:	4.2 qts 4.0 L
Coolant capacity:	8 qts 7.6 L

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Oil type:	20

Dimensions
Wheelbase:	72 inches 182 cm
Length:	108.7 inches 276 cm
Width:	63 inches 160 cm
Weight:	2580 lbs 1170 kg
Ground clearance:	12.6 inches 32 cm
Front tread:	48 to 72 inches 121 to 182 cm
Rear tread:	48 to 76 inches 121 to 193 cm
