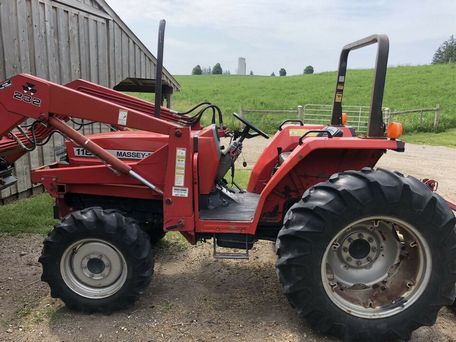

Massey Ferguson 1180
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson |
| Type: | Compact Utility tractor |
| Original price: | $26,800 (1999 ) |
Massey Ferguson 1180 Power | |
| Engine: | 52 hp 38.8 kW |
| PTO (claimed): | 46 hp 34.3 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | mechanical wet disc |
| Cab: | Two-post ROPS. |
| Transmission: | 16-speed synchronized shuttle |
Capacity | |
| Fuel: | 13.5 gal 51.1 L |
| Hydraulic system: | 8.5 gal 32.2 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 8.5 gal 32.2 L |
| Pressure: | 2417 psi 166.7 bar |
| Valves: | 0 to 2 |
| Pump flow: | 8.2 gpm 31.0 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | position, draft, and response control |
| Rear lift (at ends): | 4850 lbs 2199 kg |
| Rear lift (at 24"/610mm): | 4045 lbs 1834 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540 (1.375) |
1180 Serial Numbers | |
| 1992: | A80101 |
| 1993: | B80101 |
| 1994: | C00101 |
| 1995: | D00101 |
| 1996: | E00101 |
| 1997: | F01001 |
| 1998: | G01001 |
| 1999: | H01001 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 45 |
| Battery CCA: | 799 |
| Battery volts: | 12 |
Engine Detail | |
| Isuzu 4JBI | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 169 ci 2.8 L |
| Bore/Stroke: | 3.661x4.016 inches 93 x 102 mm |
| Power: | 52 hp 38.8 kW |
| Fuel system: | direct injection |
| Air cleaner: | dual dry element |
| Pre-heating: | glow plugs |
| Rated RPM: | 2500 |
| Torque: | 130 lb-ft 176.3 Nm |
| Torque RPM: | 1600 |
| Starter volts: | 12 |
| Oil capacity: | 7.4 qts 7.0 L |
| Coolant capacity: | 9.5 qts 9.0 L |
Transmission | |
| Type: | synchronized shuttle |
| Gears: | 16 forward and reverse |
| Clutch: | 275mm disc |
| Four gears (1-4) in four ranges (LL, L, M, and H) with shuttle. Gears 3 and 4 are synchronized. | |
Dimensions | |
| Wheelbase: | 79.9 inches 202 cm |
| Length: | 136.6 inches 346 cm |
| Width: | 60.8 inches 154 cm |
| Height (ROPS): | 90.6 inches 230 cm |
| Weight: | 4354 lbs 1974 kg |
| Ground clearance: | 13 inches 33 cm |
| Front tread: | 50.4 inches 128 cm |
| Rear tread: | 48.8 to 64.6 inches 123 to 164 cm |
