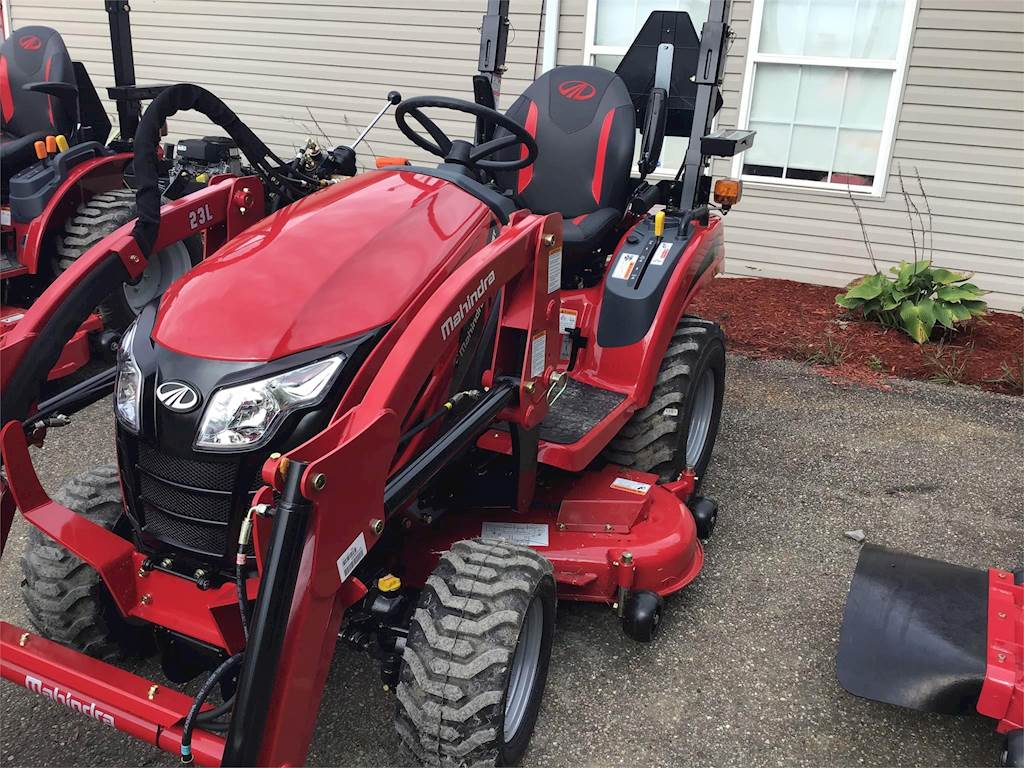

Mahindra eMax 20S

Production: 2017

Production
Manufacturer:	Mahindra
Type:	Sub-Compact Utility tractor
Original price:	$11,480 (2018 )

Mahindra eMax 20S Power
Engine:	19.4 hp 14.5 kW
PTO (claimed):	14.2 hp 10.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab available with heater.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Rear valves:	1*Optional
Total flow:	6.97 gpm 26.4 lpm
Steering flow:	2.11 gpm 8.0 lpm

Tractor hitch
Rear Type:	IN
Rear lift:	1100 lbs 498 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@2893
Mid RPM:	2500
Engine RPM:	2500@2875

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45
Battery CCA:	450
Battery volts:	12

Engine Detail
Yanmar
diesel
3-cylinder
liquid-cooled
Displacement:	60.6 ci 1.0 L
Bore/Stroke:	2.91x3.03 inches 74 x 77 mm
Emissions:	Tier IV
Power:	19.4 hp 14.5 kW
Fuel system:	indirect injection
Rated RPM:	3000
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Length:	94 inches 238 cm
Width:	44.5 inches 113 cm
Height (ROPS):	86.6 inches 219 cm
Weight:	1499 lbs 679 kg
Ground clearance:	8.3 inches 21 cm
