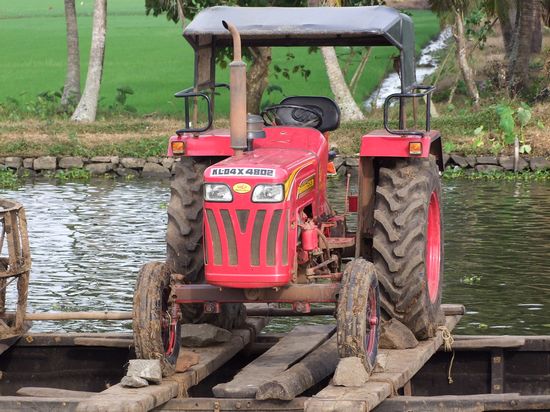

Mahindra 575 DI

Production: 2016

Contents:

Production

Manufacturer:Mahindra

Mahindra 575 DI Power

Engine:45 hp 33.6 kW
PTO (claimed):41.1 hp 30.6 kW

Mechanical

Chassis:4x2 2WD
Final drives:planetary
Steering:power
Brakes:wet disc
Cab:Open operator station.
Transmission:12-speed constant mesh

Power Take-off (PTO)

Rear PTO:transmission
live*Live PTO with dual-stage clutch optional.
Rear RPM:540
Engine RPM:23.76

Engine Detail

Mahindra
diesel
4-cylinder
liquid-cooled inline
Displacement:181.8 ci 3.0 L
Power:45 hp 33.6 kW
Air cleaner:dry
Rated RPM:2000
Torque:131.8 lb-ft 178.7 Nm
Starter type:electric

Transmission

Type:constant mesh
Gears:12 forward and 3 reverse
Clutch:dry disc
Four gears (1-4), plus reverse (R))in three ranges.

Dimensions

Wheelbase:75.8 inches 192 cm
Weight:4453 lbs 2019 kg
