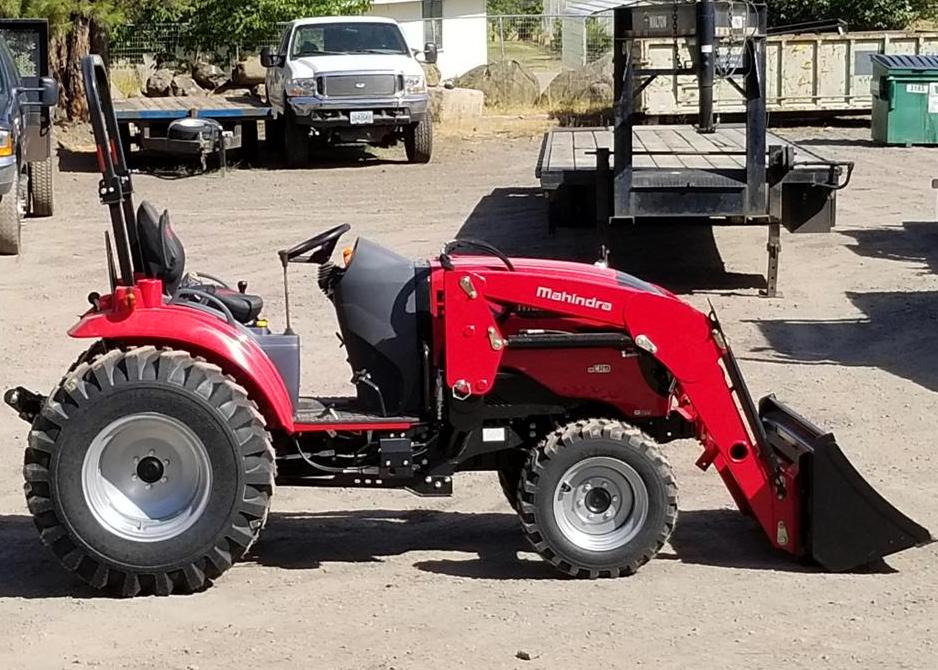

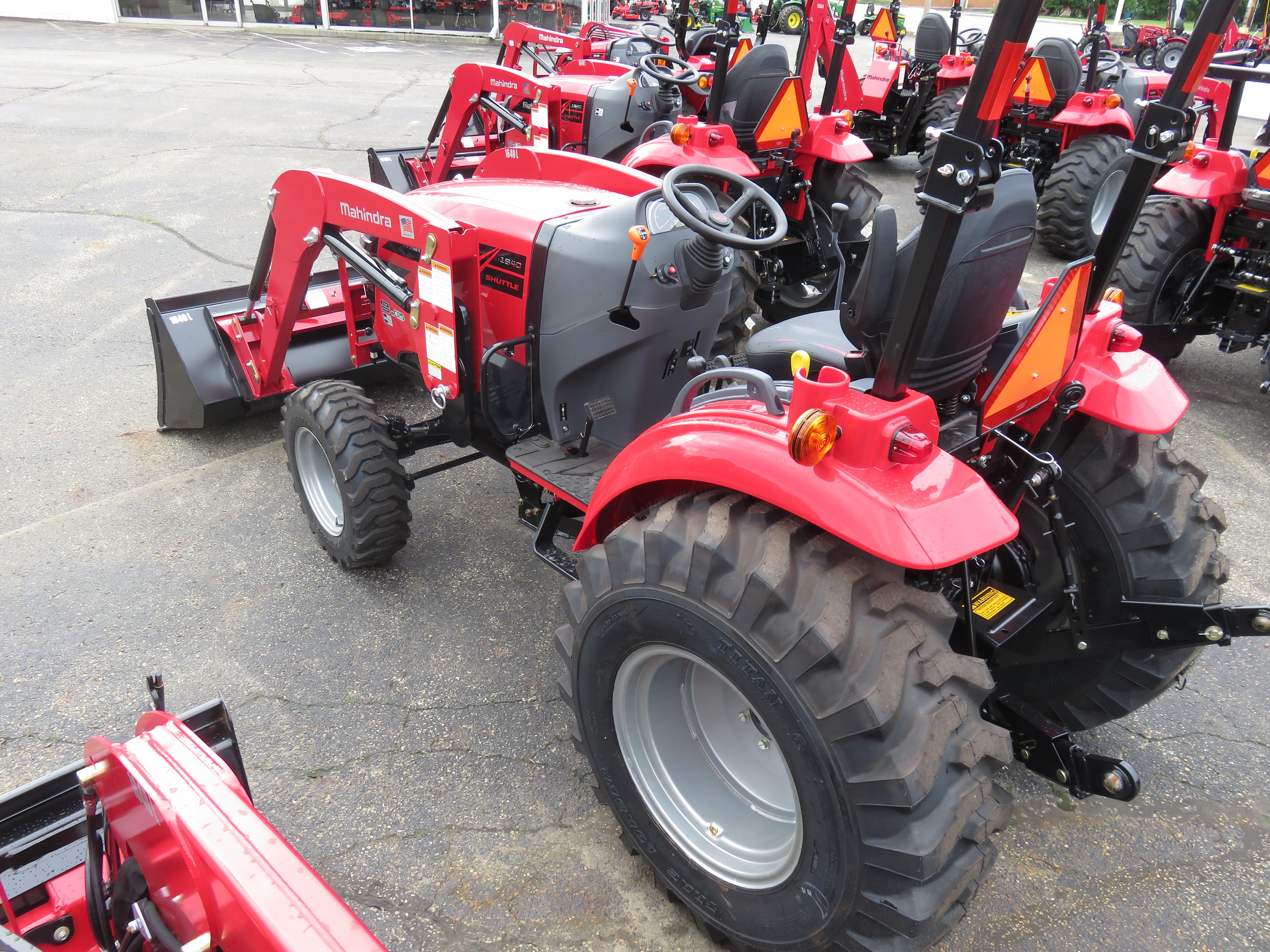

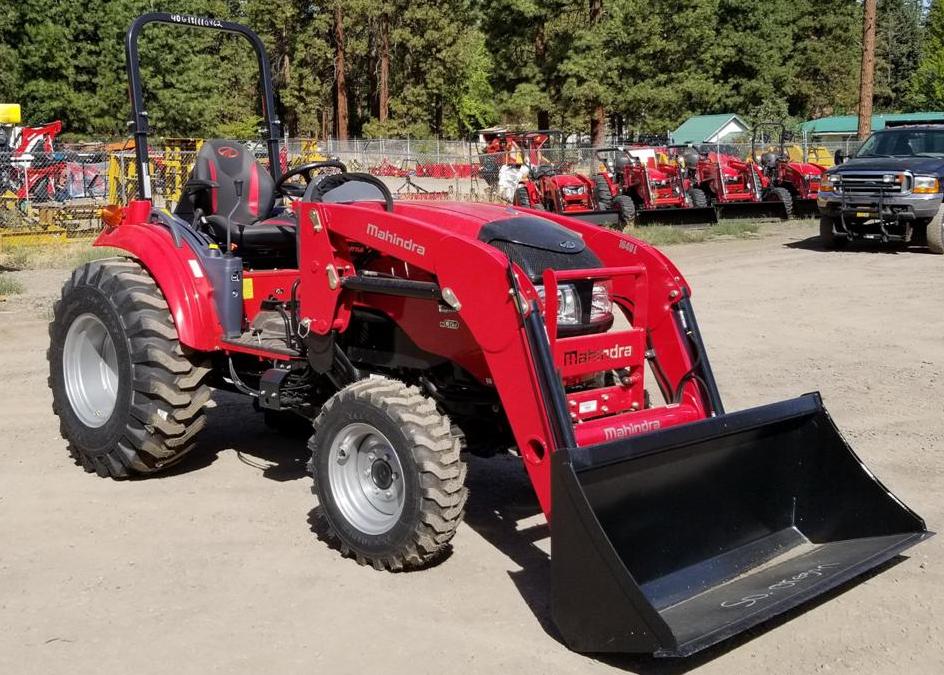

Mahindra 1640

Production: 2018

Production
Manufacturer:	Mahindra
Type:	Compact Utility tractor
Original price:	$25,900 (2018 gear )
Original price:	$27,300 (2018 hydro )

Mahindra 1640 Power
Engine:	38.7 hp 28.9 kW
PTO (claimed):	27.7 hp 20.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmissions:	8-speed sync shuttle
hydrostatic

Hydraulics
Type:	open center
Pump flow:	7.7 gpm 29.1 lpm
Steering flow:	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2646 lbs 1200 kg

Power Take-off (PTO)
Shuttle Rear PTO:	live
Hydro Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@2376
Mid RPM:	2000
Engine RPM:	2000@2545

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	90
Battery CCA:	925
Battery volts:	12

Engine Detail
Mahindra
diesel
4-cylinder
liquid-cooled
Displacement:	166.7 ci 2.7 L
Bore/Stroke:	3.50x4.33 inches 89 x 110 mm
Emissions:	Tier IV
Power:	38.7 hp 28.9 kW
Fuel system:	direct injection
Rated RPM:	2400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	76.9 inches 195 cm
Length:	127.8 inches 324 cm
Width:	62 inches 157 cm
Height (ROPS):	89.4 inches 227 cm
Height (cab):	91 inches 231 cm
Ground clearance:	12.8 inches 32 cm
