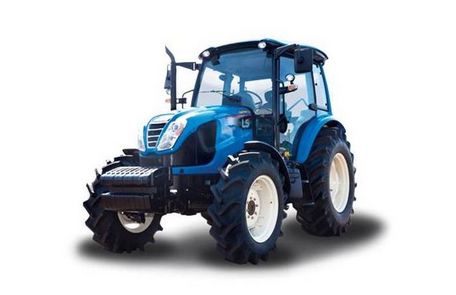

LS XR3140

Production: 2015

Production
Manufacturer:	LS
Type:	Compact Utility tractor

LS XR3140 Power
Engine (gross):	40 hp 29.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	hydrostatic

Hydraulics
Valves:	2
Pump flow:	8.2 gpm 31.0 lpm
Total flow:	13.7 gpm 51.9 lpm
Steering flow:	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type:	I
Control:	position and draft control
Rear lift (at ends):	1808 lbs 820 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	70
Charging volts:	12
Battery volts:	12

Engine Detail
LS L3C19-T
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	114.7 ci 1.9 L
Bore/Stroke:	3.465x4.055 inches 88 x 103 mm
Emissions:	Tier IV
Power (gross):	40 hp 29.8 kW
Fuel system:	common rail direct injection
Air cleaner:	dry
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	69 inches 175 cm
Length:	128.3 inches 325 cm
Width:	62 inches 157 cm
Height (cab):	86.6 inches 219 cm
Weight:	3661 lbs 1660 kg
