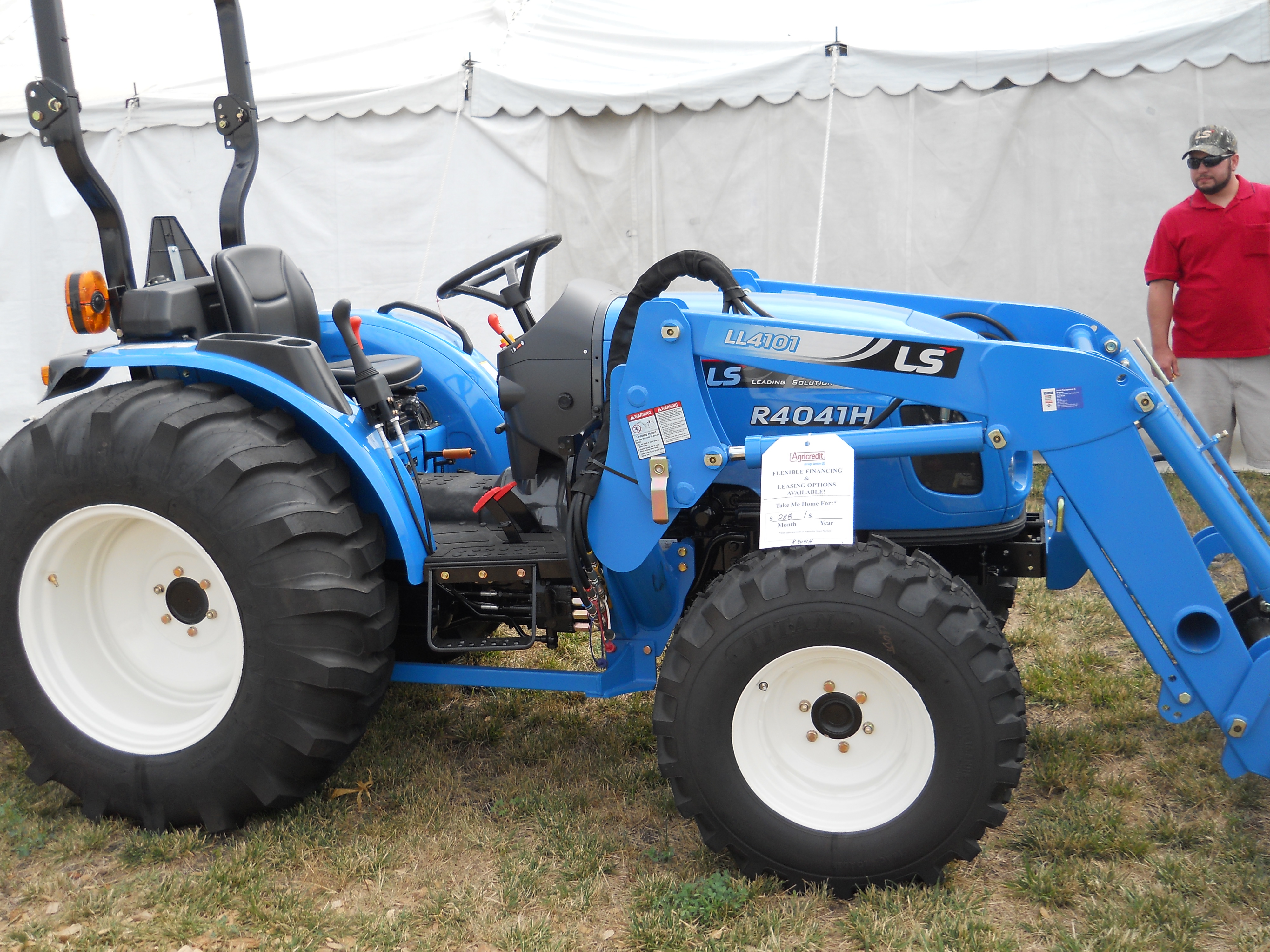

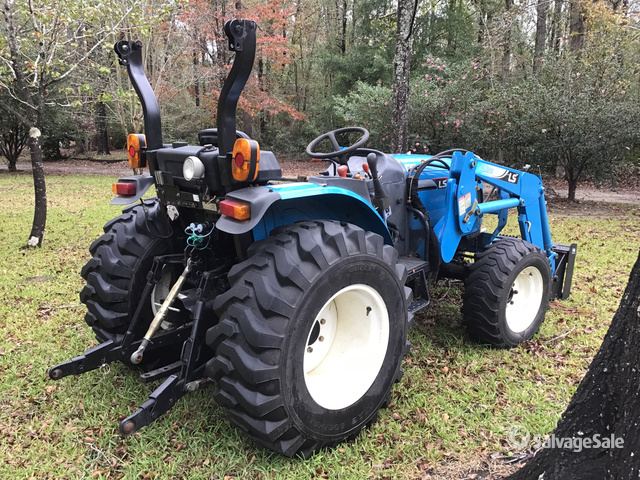

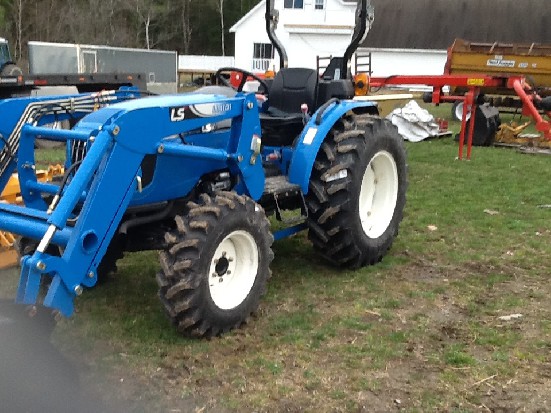

LS R4041

Production: 2011

Production
Manufacturer:	LS
Type:	Compact Utility tractor

LS R4041 Power
Engine (gross):	41 hp 30.6 kW
PTO (claimed):	35 hp 26.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmission:	16-speed synchro shuttle

Hydraulics
Pump flow:	8.2 gpm 31.0 lpm
Total flow:	12.3 gpm 46.6 lpm
Steering flow:	4.1 gpm 15.5 lpm

Tractor hitch
Rear Type:	I
Control:	position and draft control
Rear lift:	2755 lbs 1249 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid PTO:	independent (optional)
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery volts:	12

Engine Detail
Mitsibishi S4QL
diesel
4-cylinder
liquid-cooled
Displacement:	152.9 ci 2.5 L
Bore/Stroke:	3.46x4.06 inches 88 x 103 mm
Power (gross):	41 hp 30.6 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	synchro shuttle
Gears:	16 forward and reverse

Dimensions
Wheelbase:	69.2 inches 175 cm
Length:	132.2 inches 335 cm
Width:	55.9 inches 141 cm
Height (ROPS):	95.1 inches 241 cm
Weight:	3813 lbs 1729 kg
