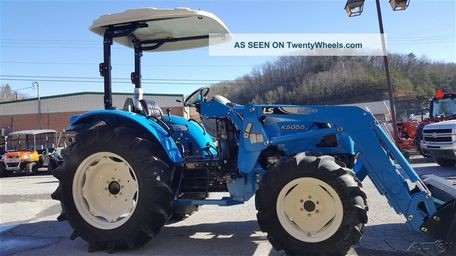

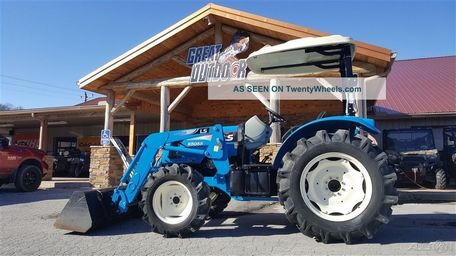

LS K5055

Production: 2014

Production
Manufacturer:	LS
Type:	Utility tractor

LS K5055 Power
Engine (gross):	55 hp 41.0 kW
PTO (claimed):	48 hp 35.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmission:	8-speed sliding gear

Hydraulics
Pump flow:	9.9 gpm 37.5 lpm
Total flow:	14.7 gpm 55.6 lpm
Steering flow:	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	3526 lbs 1599 kg

Power Take-off (PTO)
Rear PTO:	live (two-stage clutch)
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery volts:	12

Engine Detail
Mitsibishi S4S
diesel
4-cylinder
liquid-cooled
Displacement:	203.3 ci 3.3 L
Bore/Stroke:	3.7x4.72 inches 94 x 120 mm
Power (gross):	55 hp 41.0 kW
Fuel system:	indirect injection
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	sliding gear
Gears:	8 forward and 4 reverse

Dimensions
Wheelbase:	81.5 inches 207 cm (4WD)
82.3 inches 209 cm (2WD)
Length:	136.3 inches 346 cm
Width:	66 inches 167 cm (2WD)
70 inches 177 cm (4WD)
Height (ROPS):	104.6 inches 265 cm
Weight:	4076 lbs 1848 kg (2WD)
4453 lbs 2019 kg (4WD)
