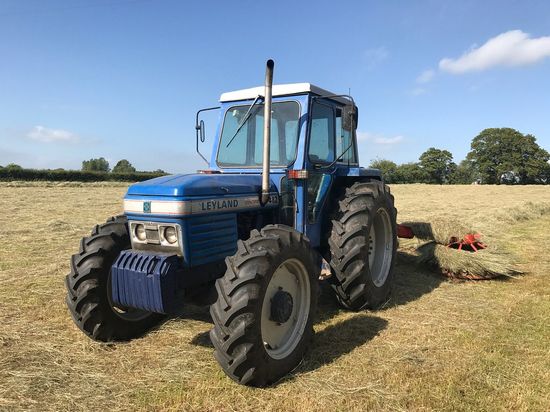

Leyland 482

Production: 1979 - 1981

Production
Manufacturer:	Leyland
Type:	Farm/Agricultural tractor

Variants

2WD

Leyland 482 Power
Engine:	82 hp 61.1 kW
Drawbar (tested):	56.04 hp 41.8 kW
PTO (tested):	74.28 hp 55.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	independent hydraulic dry disc
Transmission:	9-speed

Hydraulics
Total flow:	8.2 gpm 31.0 lpm

Tractor hitch
Rear lift:	5,953 lbs 2700 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Engine Detail
Leyland 4/98TT
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.858x4.921 inches 98 x 125 mm
Power:	82 hp 61.1 kW
Air cleaner:	single paper element
Compression:	16.8:1
Rated RPM:	2200
Torque:	70 lb-ft 94.9 Nm
Torque RPM:	1200
Starter volts:	12

Transmission
Gears:	9 forward and 3 reverse

Dimensions
Wheelbase:	83.28 inches 211 cm
Length:	151 inches 383 cm
Height:	103 inches 261 cm
Operating weight:	7,410 lbs 3361 kg
Ballasted weight:	12,000 lbs 5443 kg
