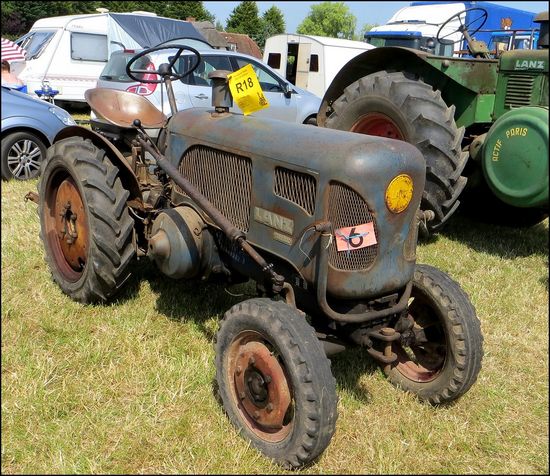

Lanz Bulldog D2416
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | Lanz |
| Type: | Standard-tread tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
Lanz D2416 Power | |
| Engine: | 24 hp 17.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 6-speed |
D2416 Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle. |
Engine Detail | |
| Lanz | |
| diesel | |
| 1-cylinder | |
| liquid-cooled | |
| Displacement: | 159.6 ci 2.6 L |
| Bore/Stroke: | 5.51x6.69 inches 140 x 170 mm |
| Power: | 24 hp 17.9 kW |
| Rated RPM: | 1050 |
Transmission | |
| Gears: | 6 forward |
