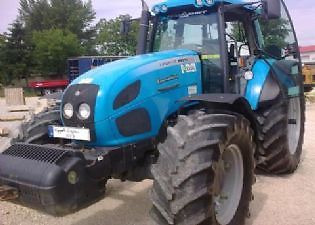

Landini Legend 185 TDI

Production: 2003 - 2005

Production
Manufacturer:	Landini
Type:	Row-Crop tractor

Landini Legend 185 TDI Power
Engine:	181 hp 135.0 kW
PTO (claimed):	162 hp 120.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Transmissions:	72-speed
108-speed

Capacity
Fuel:	69 gal 261.2 L
Hydraulic system:	17.5 gal 66.2 L

Hydraulics
Capacity:	17.5 gal 66.2 L
Pump flow:	25.7 gpm 97.3 lpm

Tractor hitch
Rear lift:	18,480 lbs 8382 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Engine Detail
Perkins 1106-E60TA
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	365 ci 6.0 L
Bore/Stroke:	3.94x5.00 inches 100 x 127 mm
Power:	181 hp 135.0 kW
Rated RPM:	2200
Torque:	513 lb-ft 695.6 Nm

Dimensions
Wheelbase:	110 inches 279 cm
Length:	214.5 inches 544 cm
Width:	98 inches 248 cm
Height:	110 inches 279 cm
Weight:	13,750 lbs 6237 kg
Ground clearance:	21.5 inches 54 cm
