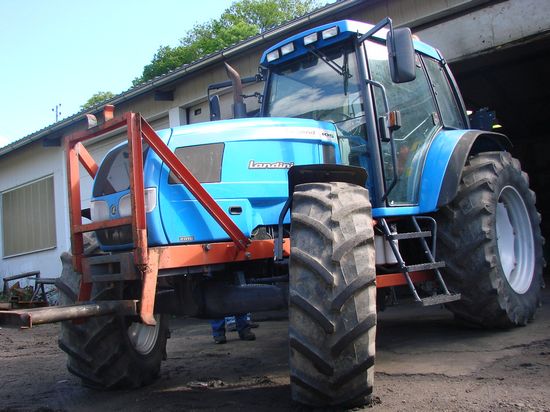

Landini Legend 105

Production: 1997 - 2001

Production
Manufacturer:	Landini

Landini 105 Power
Engine:	103 hp 76.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	standard with A/C
Transmissions:	36-speed
72-speed

Hydraulics
Total flow:	16.4 gpm 62.1 lpm

Tractor hitch
Rear lift:	15,435 lbs 7001 kg

Power Take-off (PTO)
Rear RPM:	540/1000/ground

Engine Detail
Perkins 1006-6HR4
6-cylinder
Displacement:	366.1 ci 6.0 L
Bore/Stroke:	3.937x5.00 inches 100 x 127 mm
Power:	103 hp 76.8 kW
Rated RPM:	2200
Torque:	291.4 lb-ft 395.1 Nm
Torque RPM:	1200

Dimensions
Wheelbase:	110.2 inches 279 cm
Length:	195.7 inches 497 cm
Height:	116.1 inches 294 cm
Weight:	11,246 lbs 5101 kg
