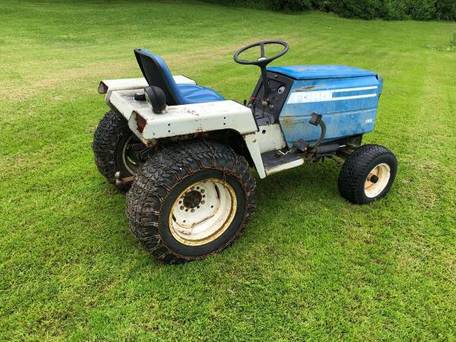

Ford LGT-195

Production: 1978 - 1980

Production
Distributor	Ford
Manufacturer	Jacobsen
Type	Garden tractor
Original price	1077
The Ford LGT-195 was available with a 48-inch rear tiller that required the 2000-RPM rear PTO and Category-0 three-point hitch.

Variants

similar Jacobsen model

Mechanical
Chassis	4x2 2WD
Steering	power assist
Brakes	mechanical drum
Cab	Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear RPM	540 OptOptional
2000 OptOptional
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Charging system	solid state regulator rectifier
Charging amps	15
Battery volts	12

Engine Detail
Kohler K532QS
gasoline
2-cylinder
air-cooled
Displacement	879 cc 53.67 ci
Bore/Stroke	3.38x3.00 inches 86 x 76 mm
Power	19.9 hp 14.8 kW
Starter volts	12
Oil capacity	3.5 qts 3.3 L

Transmission
Transmission	Eaton 11
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions
Wheelbase	56 inches 142 cm
Length	84 inches 213 cm
Width	49 inches 124 cm
Height	46 inches 116 cm
Shiping weight	1,125 lbs 510 kg
Ground clearance	10 inches 25 cm
