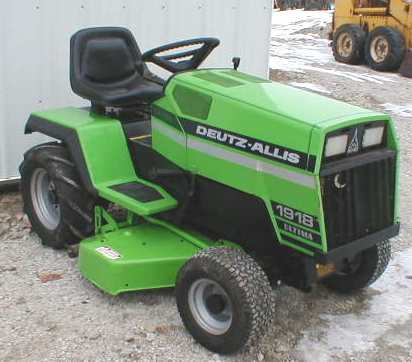

Deutz-Allis 1918 Ultima

Production: 1987 - 1992

Production
Distributor:	Deutz-Allis
Manufacturer:	Simplicity
Type:	Garden tractor

Mechanical
Chassis:	4x2 2WD
Final drives:	spur gear
Steering:	manual
hydrostatic power optional
Brakes:	drum
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	4.25 gal 16.1 L

Tractor hitch
Rear Type:	0 (optional)

Power Take-off (PTO)
Rear PTO:	optional
Rear RPM:	2000
Mid PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging system:	flywheel alternator
Charging amps:	15

Engine Detail
Kohler MV-18
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement:	691 cc 42.18 ci
Bore/Stroke:	3.125x2.75 inches 79 x 70 mm
Power (gross):	18 hp 13.4 kW
Air cleaner:	dual dry element
Rated RPM:	3600
Starter volts:	12
Oil capacity:	1.5 qts 1.4 L
Sparkplug:	Champion RV15YC
Sparkplug gap:	0.025 inches 0.635 mm

Transmission
Transmission:	Sundstrand 15
Type:	shaft-driven hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	6 qts 5.7 L
Oil type:	Type F ATF

Dimensions
Wheelbase:	51 inches 129 cm
Length:	78 inches 198 cm
Width:	38.5 inches 97 cm
Height (steering wheel):	47 inches 119 cm
Weight:	955 lbs 433 kg
