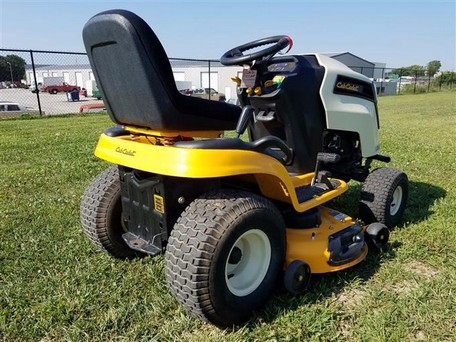

Cub Cadet LTX 1046 KW

Production: 2011 - 2014

Production
Manufacturer:	Cub Cadet (a part of MTD)
Type:	Lawn tractor
Original price:	$2,099 (2011)

Mechanical
Chassis:	4x2 2WD
Steering:	manual sector and pinion
Cab:	Open operator station with high-back seat. Six inches travel with 12 positions.
Transmission:	hydrostatic

Capacity
Fuel:	3.3 gal 12.5 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging system:	flywheel alternator
Charging amps:	15

Engine Detail
Kawasaki FR651
gasoline
2-cylinder
air-cooled vertical-shaft V-twin OHV
Displacement:	726 cc 44.3 ci
Bore/Stroke:	3.071x2.992 inches 78 x 76 mm
Power (gross):	20 hp 14.9 kW
Starter:	electric
Starter volts:	12
Oil capacity:	1.9 qts 1.8 L

Transmission
Transmission:	Tuff Torq 918
Type:	hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	2 qts 1.9 L

Dimensions
Wheelbase:	47.5 inches 120 cm
Length:	69 inches 175 cm
Weight:	513 lbs 232 kg *Weight with mower deck.
