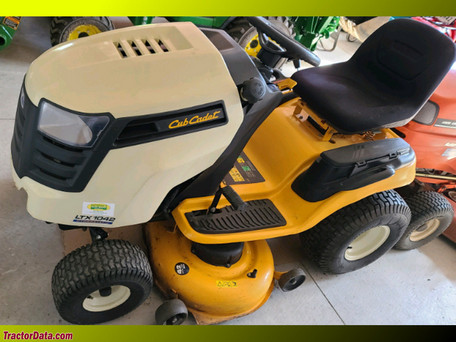

Cub Cadet LTX 1042 KH

Production: 2009 - 2011

Production
Manufacturer	Cub Cadet (a part of MTD)
Type	Lawn tractor
Original price	$1,850 (2010 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station with mid-back seat. Six inches travel with 12 positions.

Power Take-off (PTO)
Front PTO	independent
Clutch	manual lever

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	190
Battery volts	12

Engine Detail
Kohler SV600
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	596 cc 36.4 ci
Bore/Stroke	3.7x3.4 inches 94 x 86 mm
Power (gross)	20 hp 14.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.6 qts 1.5 L

Transmission
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	1.9 qts 1.8 L

Dimensions
Wheelbase	47.5 inches 120 cm
Length	69 inches 175 cm
Weight	498 lbs (with deck) 225 kg
