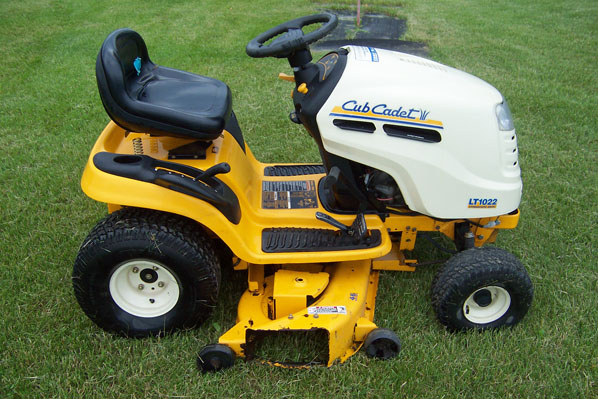

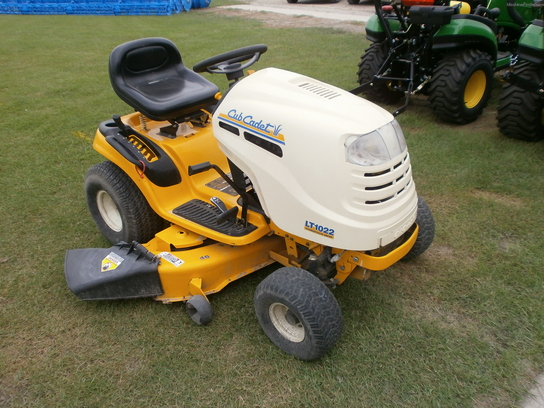

Cub Cadet LT 1022

Production: 2004

Production
Manufacturer	Cub Cadet (a part of MTD)
Type	Lawn tractor

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	dry disc
Cab	Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Charging system	alternator
Charging amps	16
Battery CCA	270
Battery volts	12

Engine Detail
Briggs & Stratton 40H777
gasoline
2-cylinder
air-cooled
Displacement	655 cc 40.0 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power (gross)	22 hp 16.4 kW
Compression	8.5:1
Rated RPM	3600
Idle RPM	1200-3600
Torque	31.6 lb-ft 42.8 Nm
Torque RPM	2400
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	100 h
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Transmission	Hydro-Gear 311-0510
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions
Wheelbase	47 inches 119 cm
Length	68 inches 172 cm
Width	49 inches 124 cm
Height (steering wheel)	43 inches 109 cm
Weight	509 lbs 230 kg
Ground clearance	4.5 inches 11 cm
