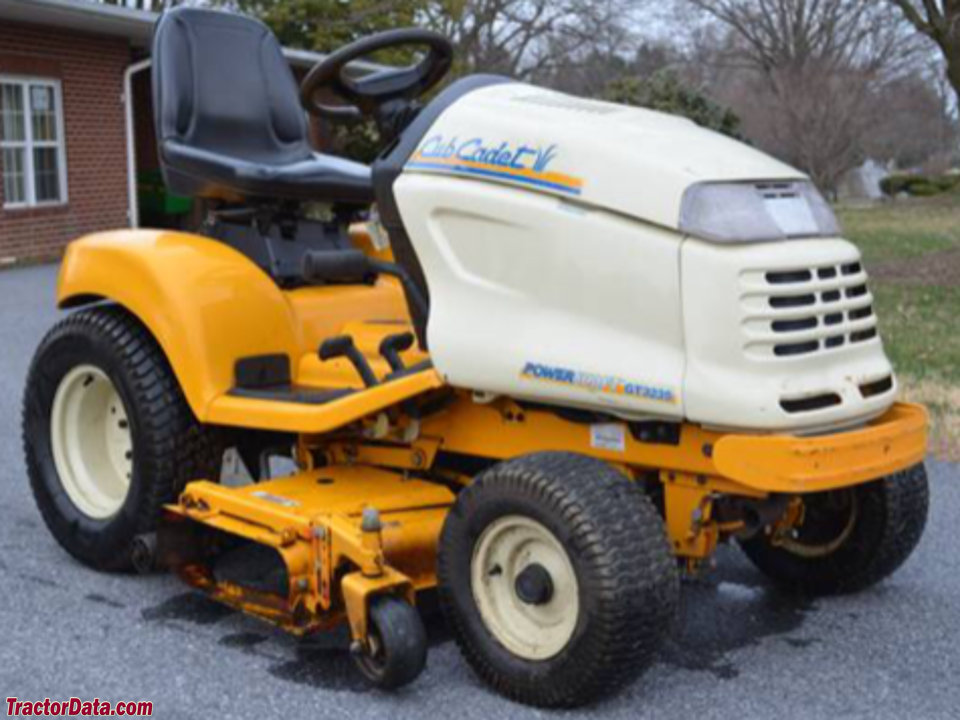

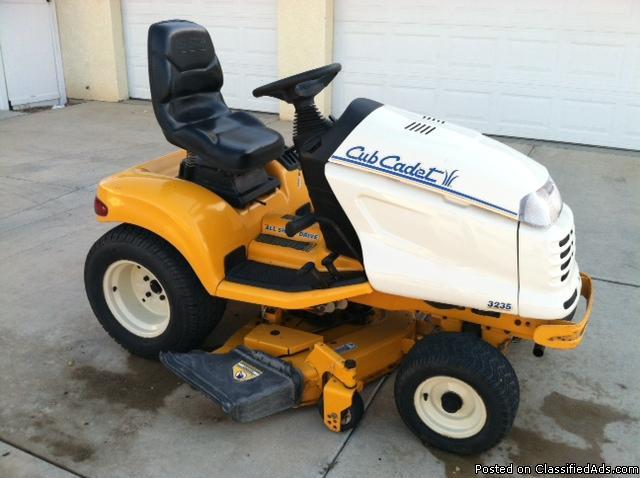

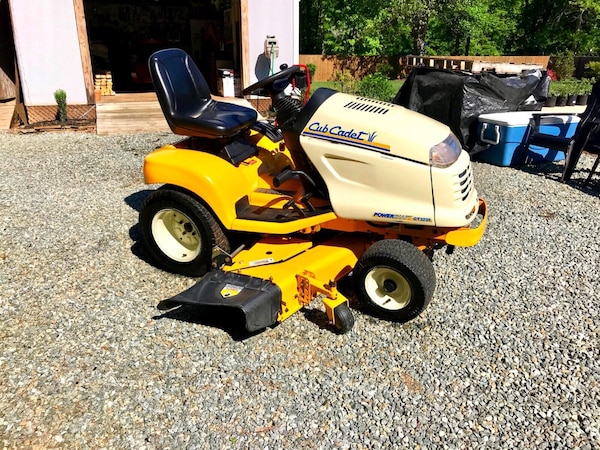

Cub Cadet GT 3235

Production: 2004

Production
Manufacturer:	Cub Cadet (a part of MTD)
Type:	Garden tractor

Mechanical
Chassis:	4x2 2WD
Steering:	power
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	4.5 gal 17.0 L

Tractor hitch
Rear Type:	0*Optional

Power Take-off (PTO)
Front PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging system:	flywheel alternator
Charging amps:	15

Engine Detail
Kohler Command CH23
gasoline
2-cylinder
air-cooled V-twin OHV
Displacement:	721 cc 44 ci
Power (gross):	25 hp 18.6 kW
Compression:	9.0:1
Idle RPM:	1200-3600
Starter:	electric
Starter volts:	12
Oil capacity:	2 qts 1.9 L
Sparkplug:	Champion RC12YC

Transmission
Type:	shaft-driven hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	5.5 qts 5.2 L

Dimensions
Wheelbase:	49.5 inches 125 cm
Length:	72.25 inches 183 cm
Width:	42 inches 106 cm
Height:	43.6 inches 110 cm
Weight:	803 lbs 364 kg (tractor only)
