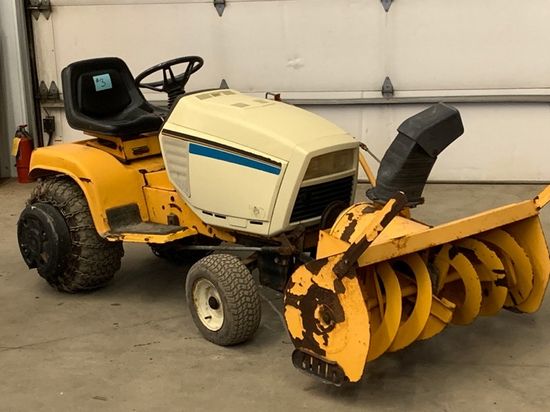

Cub Cadet 1864

Production: 1993 - 1997

Production
Manufacturer:	Cub Cadet (a part of MTD)
Type:	Garden tractor

Variants

manual steering

power steering

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	dual disc
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	5 gal 18.9 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	electric

1864 Serial Numbers

1993: 836001 1994: 851001 1995: 864501 1996: 880001 1997: 889001

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	15

Engine Detail
Kohler Command
gasoline
2-cylinder
air-cooled V-Twin OHV
Displacement:	624 cc 38.1 ci
Bore/Stroke:	3.03x2.64 inches 77 x 67 mm
Power (gross):	18 hp 13.4 kW
Idle RPM:	1200-3600
Starter:	electric
Starter volts:	12
Sparkplug gap:	0.040 inches 1.016 mm

Transmission
Transmission:	Sundstrand
Type:	shaft-driven hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	7 qts 6.6 L

Dimensions
Wheelbase:	45.5 inches 115 cm
Length:	72 inches 182 cm
Width:	37.75 inches 95 cm
Height (steering wheel):	44 inches 111 cm
Weight:	880 lbs 399 kg *Weight with 54-inch mower deck.
Ground clearance:	6 inches 15 cm
Front axle:	Cast-iron
Front tread:	29 inches 73 cm
Rear tread:	27 inches 68 cm
