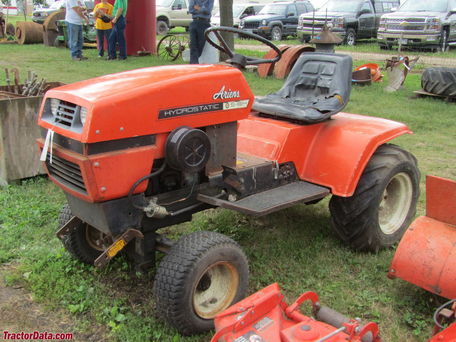

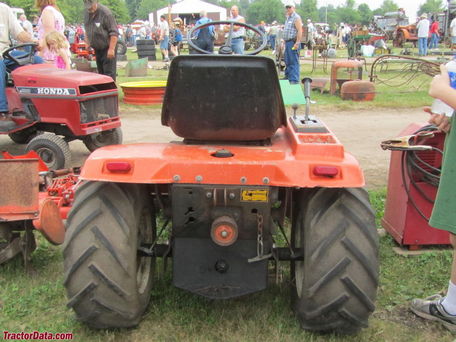

Ariens S-16H
Contents:
S-16H Serial Location | |
| Serial number on the right side of the tractor frame, above the front axle. |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery CCA | 255 |
| Battery volts | 12 |
| Battery AH | 39 |
Engine Detail | |
| Kohler K341S | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 588 cc 35.90 ci |
| Bore/Stroke | 3.75x3.25 inches 95 x 83 mm |
| Power (gross) | 16 hp 11.9 kW |
| Fuel use | 1.50 gal/hour 5.7 l/hour |
| Air cleaner | dry element with foam precleaner |
| Compression | 7.3:1 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.025 inches 0.635 mm |
Transmission | |
| Transmission | Sunstrand |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 5.5 qts 5.2 L |
| Oil type | SAE 5W-30 |
Dimensions | |
| Wheelbase | 48 inches 121 cm |
| Length | 74.75 inches 189 cm |
| Width | 43 inches 109 cm |
| Height (steering wheel) | 47.75 inches 121 cm |
| Shiping weight | 895 lbs 405 kg |
