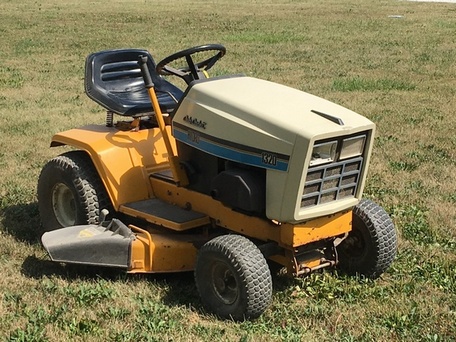

Cub Cadet 1320

Production: 1989 - 1991
Type: Lawn Tractors

Contents:

Production

Manufacturer:Cub Cadet (a part of MTD)
Type:Lawn tractor

Variants

gear
hydrostatic

Mechanical

Chassis:4x2 2WD
Steering:manual
Brakes:dry disc
Cab:Open operator station.
Transmission:hydrostatic

Capacity

Fuel:3 gal 11.4 L

Power Take-off (PTO)

Front PTO:independent
Clutch:mechanical

Electrical

Ground:negative
Charging system:alternator
Charging amps:15

Engine Detail

Kohler
gasoline
1-cylinder
air-cooled
Displacement:398 cc 24.29 ci
Bore/Stroke:3.43x2.64 inches 87 x 67 mm
Power (gross):12.5 hp 9.3 kW
Idle RPM:1800-3300
Starter:electric
Starter volts:12
Sparkplug:RC12YC
Sparkplug gap:0.030 inches 0.762 mm

Transmission

Type:hydrostatic
Gears:infinite forward and reverse

Dimensions

Wheelbase:45 inches 114 cm
Length:68.5 inches 173 cm
Weight:469 lbs 212 kg
