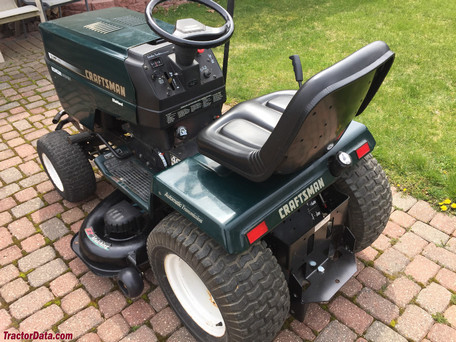

Craftsman 917.25887

Production: 1997

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	AYP
Type	Garden tractor

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Electrical
Ground	negative
Battery CCA	240
Battery volts	12
Battery AH	30
Battery Group	U1R

Engine Detail
Kohler MV18S
gasoline
2-cylinder
air-cooled vertical-shaft opposed-twin
Displacement	691 cc 42.18 ci
Bore/Stroke	3.12x2.75 inches 79 x 70 mm
Power	18.5 hp 13.8 kW
Starter	electric
Starter volts	12
Sparkplug	Champion RV17YC
Sparkplug gap	0.025 inches 0.635 mm

Transmission
Transmission	Hydro-Gear 210-3010L
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, service not recommended
