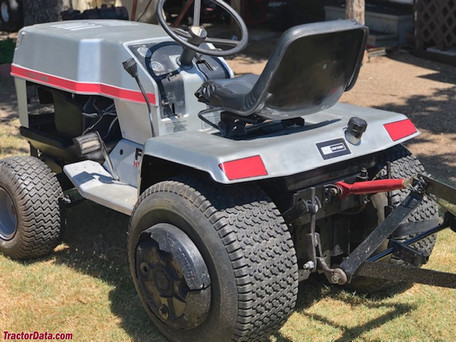

Craftsman 917.25481 FF/18

Production: 1981 - 1982

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	Roper
Type	Garden tractor
Original price	$4,000 (1982 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	disc
Cab	Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear RPM	2000
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Battery volts	12

Engine Detail
Briggs & Stratton 422437
gasoline
2-cylinder
air-cooled opposed-twin
Displacement	693 cc 42.33 ci
Bore/Stroke	3.44x2.28 inches 87 x 58 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3600
Torque	27.8 lb-ft 37.7 Nm
Torque RPM	2700
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Transmission	Eaton 11
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	7.5 qts 7.1 L
Oil type	ATF F

Dimensions
Length	75.8 inches 192 cm
Height (steering wheel)	39.6 inches 100 cm
Weight	820 lbs 371 kg
