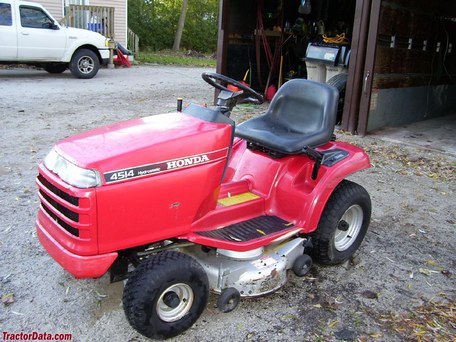

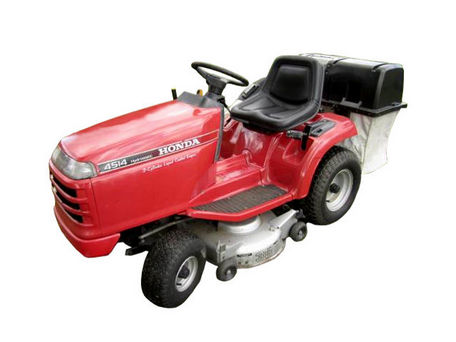

Honda H4514

Production: 1990 - 1998

PDF

• Download Honda H4514H Owner's Manual

Production
Manufacturer:	Honda

Mechanical
Chassis:	4x2 2WD
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	2.38 gal 9.0 L

Electrical
Ground:	negative

Engine Detail
Honda GX360K1
gasoline
2-cylinder
liquid-cooled
Displacement:	358 cc 21.9 ci
Bore/Stroke:	2.28x2.68 inches 58 x 68 mm
Power:	14 hp 10.4 kW
Starter:	electric
Starter volts:	12
Coolant capacity:	1.85 qts 1.8 L
Sparkplug gap:	0.026 inches 0.660 mm

Transmission
Type:	hydrostatic
Gears:	infinite forward and reverse
Single control lever with stop for mowing range and transport range.

Dimensions
Wheelbase:	46.9 inches 119 cm
Length:	71.5 inches 181 cm
Width:	50.0 inches 127 cm
Height:	41.3 inches 104 cm
Weight:	569 lbs 258 kg (dry with 38-inch deck)
595 lbs 269 kg (dry with 42-inch deck)
