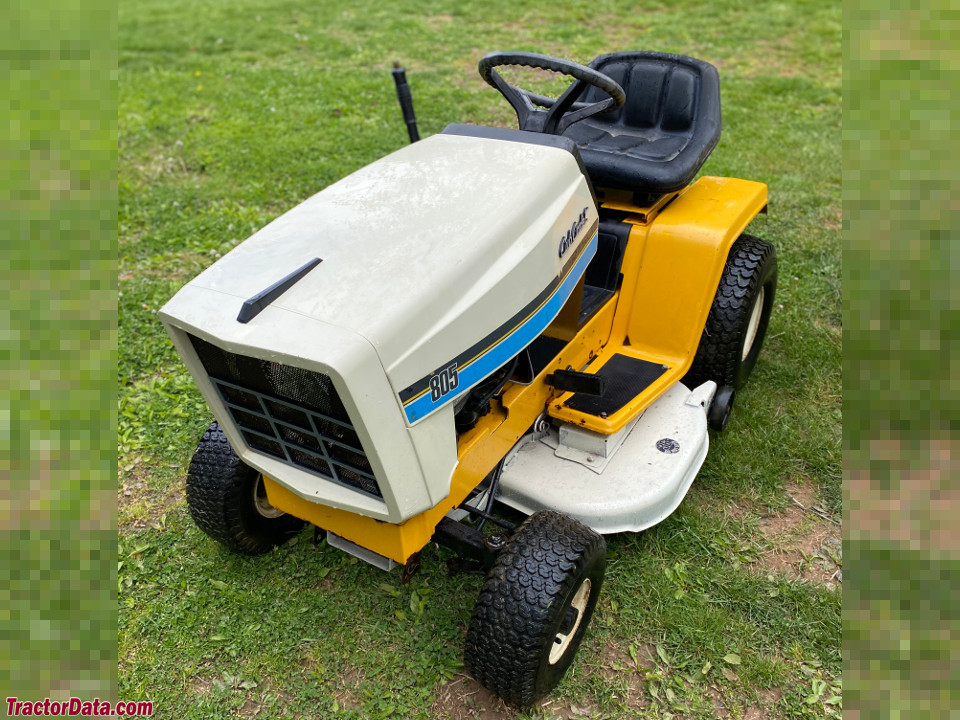

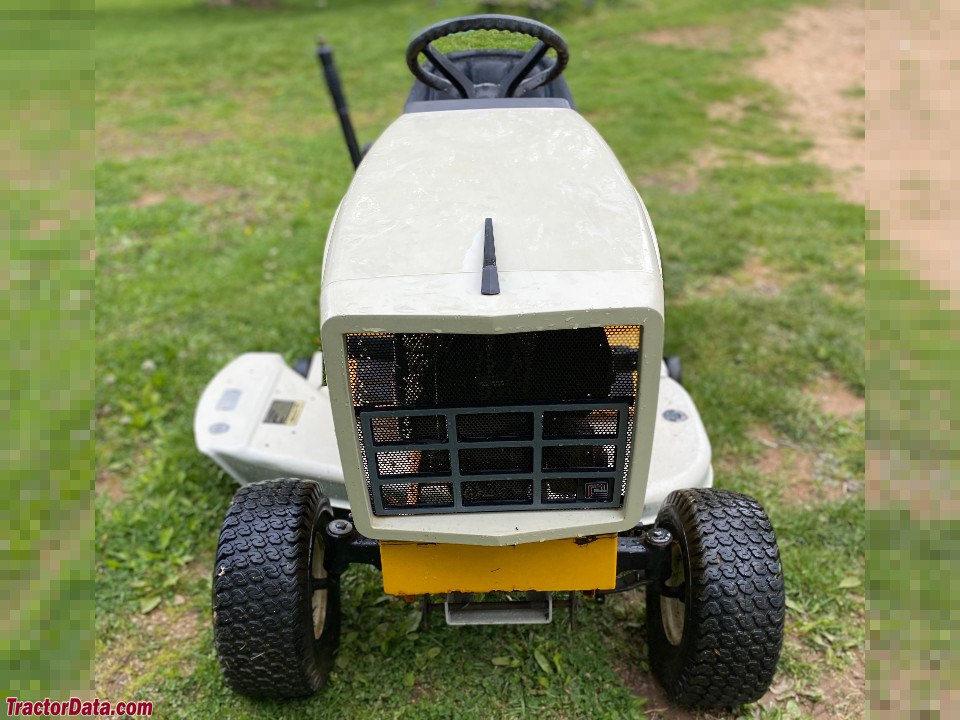

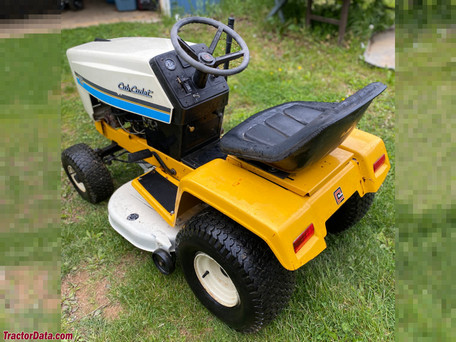

Cub Cadet 805

Production: 1985 - 1986

Production
Manufacturer	Cub Cadet (a part of MTD)
Type	Lawn tractor
Original price	$2,179 (1985 )
Original price	$2,249 (1986 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

805 Serial Numbers
Location:	Left side of tractor frame.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Briggs & Stratton 191707
gasoline
1-cylinder
air-cooled
Displacement	318 cc 19.44 ci
Power	8 hp 6.0 kW
Idle RPM	1800-3500
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Type	gear
Gears	5 forward and 1 reverse
Oil capacity	1.4 qts 1.3 L

Dimensions
Wheelbase	45 inches 114 cm
Length	68.5 inches 173 cm
Weight	473 lbs*Weight with mower deck. 214 kg
