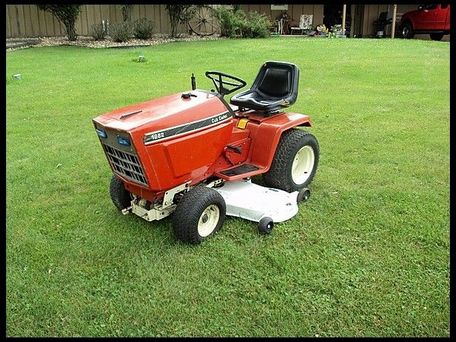

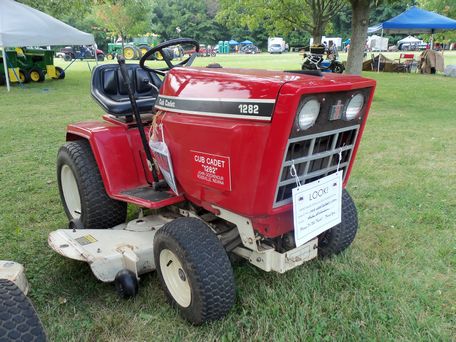

Cub Cadet 1282
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Cub Cadet (a part of MTD) |
| Type | Garden tractor |
Variants | |
| Cadet yellow | |
| IH red | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | wet disc |
| Cab | Open operator station. |
Tractor hitch | |
| Rear Type | 0 (optional) |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electric |
1282 Serial Numbers | |
| 1982 | 700000 |
| 1983 | 712900 |
| 1984 | 724525 |
| 1985 | 737625 |
1282 Serial Location | |
| Left side of tractor frame |
Electrical | |
| Ground | negative |
| Battery CCA | 200 |
| Battery volts | 12 |
| Battery AH | 32 |
Engine Detail | |
| Kohler K301 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 476 cc 29.07 ci |
| Bore/Stroke | 3.38x3.25 inches 86 x 83 mm |
| Power (gross) | 12 hp 8.9 kW |
| Fuel system | Kohler side-draft carburetor with mechanical diaphragm fuel pump |
| Rated RPM | 2200 |
| Torque | 22 lb-ft 29.8 Nm |
| Torque RPM | 2100 |
Transmission | |
| Transmission | Sundstrand |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Hydrostatic transmission controlled with right-hand lever on dashboard. Cast-iron transmission case used from start of production until mid 1983, tractor serial number 719,999. Aluminum-case transmission used afterward. | |
Dimensions | |
| Wheelbase | 44 inches 111 cm |
| Length | 72 inches 182 cm |
| Width | 37.75 inches 95 cm |
| Height (steering wheel) | 43 inches 109 cm |
| Operating weight | 657 lbs 298 kg |
| Ground clearance | 6 inches 15 cm |
| Front tread | 29 inches 73 cm |
| Rear tread | 27 inches 68 cm |
