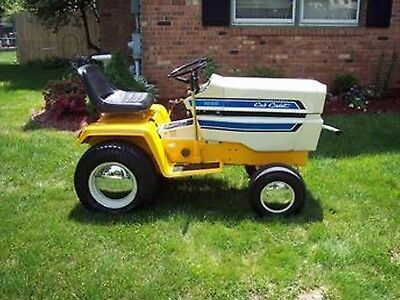

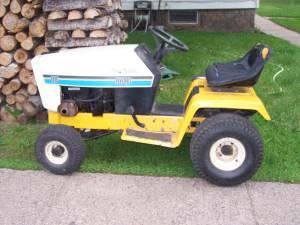

Cub Cadet 1110

Production: 1985 - 1986

Production
Manufacturer	Cub Cadet (a part of MTD)
Type	Lawn tractor

Variants

gear

hydrostatic

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

1110 Serial Numbers
Location:	Left side of tractor frame.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Briggs & Stratton 253707
gasoline
1-cylinder
air-cooled
Displacement	399 cc 24.36 ci
Power	11 hp 8.2 kW
Idle RPM	1800-3500
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	1.4 qts 1.3 L

Dimensions
Wheelbase	45 inches 114 cm
Length	68.5 inches 173 cm
Weight	506 lbs (36-inch deck) 229 kg
522 lbs (44-inch deck) 236 kg
