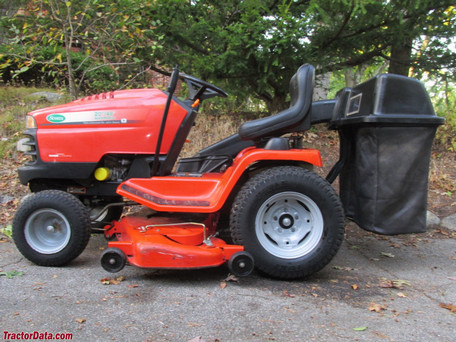

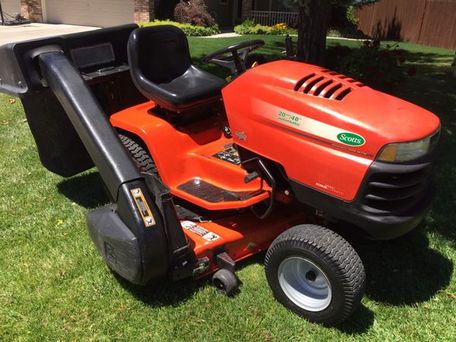

Scotts S2048

Production: 1999 - 2001
Type: Lawn Tractors

Contents:

PDF

Production

DistributorScotts
ManufacturerJohn Deere
TypeLawn tractor
FactoryHoricon, Wisconsin, USA

Mechanical

Chassis4x2 2WD
Steeringmanual
CabOpen operator station.

Power Take-off (PTO)

Mid PTOindependent
Clutchelectric

S2048 Serial Numbers

1999M02048S010001
2000M02048S020001
2001M02048S035001

S2048 Serial Location

Rear of tractor, above hitch.

Electrical

Groundnegative
Battery volts12

Engine Detail

Kohler CV20S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement624 cc 38.1 ci
Bore/Stroke3.03x2.64 inches 77 x 67 mm
Power20 hp 14.9 kW
Air cleanerpaper with foam precleaner
Starterelectric
Starter volts12
Sparkplug gap0.030 inches 0.762 mm

Transmission

TransmissionTuff Torq K62
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil type5W30

Dimensions

Length72 inches 182 cm
Height44.9 inches 114 cm
Weight570 lbs 258 kg

Scotts S2048 Video

Scotts S2046

Scotts S1642

Scotts S2554

Scotts L17.542

Scotts L1742

Scotts L2048
