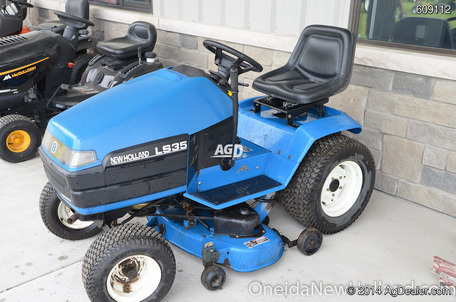

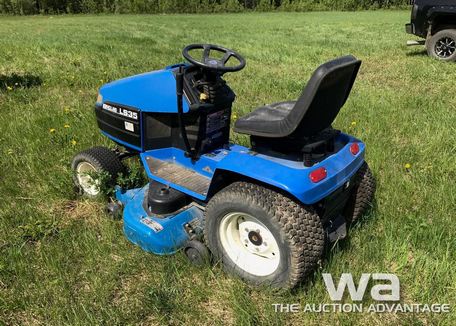

New Holland LS35

Production: 1996 - 2003

Production
Distributor	New Holland
Manufacturer	Toro
Type	Garden tractor
Original price	$3,980 (2003 )
The New Holland LS35 is similar to the Toro/Wheelhorse 265-H.

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	mechanical band
Cab	Open operator station with adjustable seat.

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	200
Battery volts	12

Engine Detail
Kohler CV15
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	426 cc 26 ci
Bore/Stroke	3.543x2.64 inches 90 x 67 mm
Power (gross)	15 hp 11.2 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission
Transmission	Tuff Torq K61
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L
Foot-pedal controlled hydrostatic transmission with optional cruise control.

Dimensions
Wheelbase	49.5 inches 125 cm
Length	69 inches 175 cm
Width	35.25 inches 89 cm
Height (steering wheel)	42.4 inches 107 cm
Weight	510 lbs 231 kg
Ground clearance	7.25 inches 18 cm
Front axle	Cast-iron
