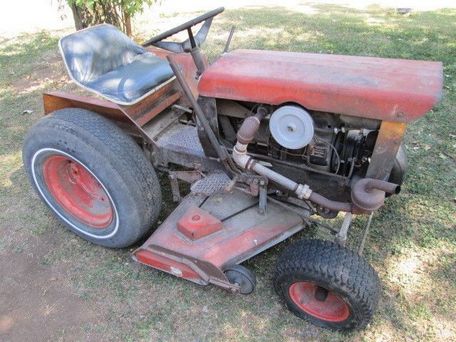

Colt 2510
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Colt |
| Type | Garden tractor |
| Factory | Winneconne, Wisconsin, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | Hydra-Brake |
| Cab | Open operator station. |
Hydraulics | |
| Pump flow | 5 gpm 18.9 lpm |
Tractor hitch | |
| Drawbar | rigid 1.5 x 0.375 inch bar with three 0.54-inch holes |
2510 Serial Numbers | |
| Location: | Lower-right side of dashboard. |
Electrical | |
| Ground | negative |
| Charging system | starter-generator |
| Charging amps | 12 |
| Battery volts | 12 |
Engine Detail | |
| Tecumseh HH-100 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 389 cc 23.75 ci |
| Power (gross) | 10 hp 7.5 kW |
| Rated RPM | 3600 |
| Starter volts | 12 |
Transmission | |
| Transmission | Hydra-Drive |
| Type | hydraulic drive |
| Gears | infinite forward and reverse (2-range) |
Dimensions | |
| Wheelbase | 46 inches 116 cm |
| Length | 68 inches 172 cm |
| Width | 39 inches 99 cm |
| Height (steering wheel) | 42 inches 106 cm |
| Height (hood) | 36 inches 91 cm |
| Shipping weight | 750 lbs 340 kg |
| Ground clearance | 9 inches 22 cm |
| Front axle | Cast-iron |
