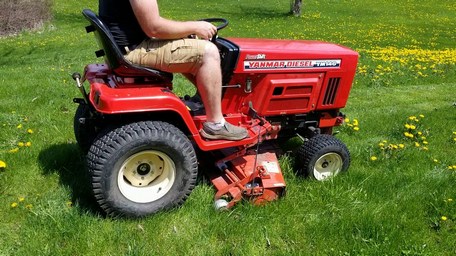

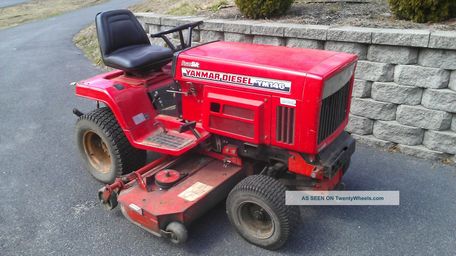

Yanmar YM146

Production: 1983 - 1987

Production
Manufacturer	Yanmar
Type	Garden tractor
Original price	$5,200 (1983 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	mechanical drum
Cab	Open operator station.

Hydraulics
Type	open center
Pressure	853 psi 58.8 bar
Pump flow	2 gpm 7.6 lpm

Tractor hitch
Rear Type	0
Rear lift (at ends)	375 lbs 170 kg
Rear lift (at 24"/610mm)	276 lbs 125 kg

Power Take-off (PTO)
Rear PTO	transmission
Rear RPM	2000
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12
Battery AH	47

Engine Detail
Yanmar 2T75U-N
diesel
2-cylinder
liquid-cooled
Displacement	635 cc 38.8 ci
Bore/Stroke	2.95x2.84 inches 75 x 72 mm
Power	14 hp 10.4 kW
Air cleaner	dry
Rated RPM	2600
Idle RPM	1300-2825
Starter volts	12
Coolant capacity	3.7 qts 3.5 L

Transmission
Type	two-speed power shift
Gears	6 forward and 3 reverse
Oil capacity	6.2 qts 5.9 L
Oil type	JDM303

Dimensions
Wheelbase	51.5 inches 130 cm
Length	75.5 inches 191 cm
Width	39.9 inches 101 cm
Height (steering wheel)	44.8 inches 113 cm
Shiping weight	844 lbs 382 kg
Ground clearance	6.6 inches 16 cm
