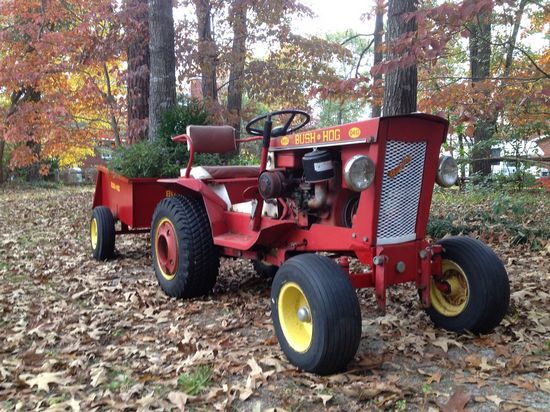

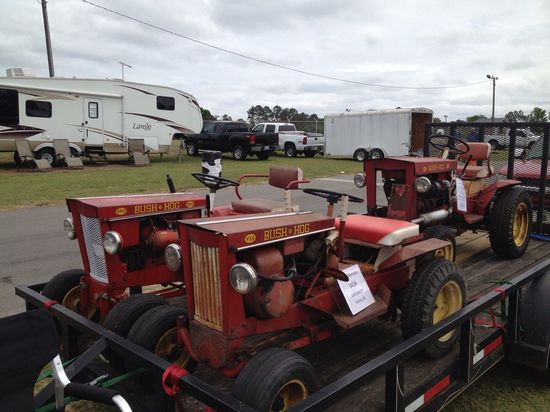

Bush Hog D4-10

Production: 1966 - 1971
Type: Garden Tractors

Contents:

Production

ManufacturerBush Hog
TypeGarden tractor
FactoryGalesburg, Kansas, USA

Mechanical

Chassis4x2 2WD
Steeringmanual
CabOpen operator station.

Power Take-off (PTO)

Mid PTOindependent
Clutchmanual

Electrical

Groundnegative
Battery volts12

Engine Detail

Wisconsin TR-10D
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement331 cc 20.2 ci
Bore/Stroke3.125x2.625 inches 79 x 67 mm
Power10 hp 7.5 kW
Starterelectric
Starter volts12

Transmission

Typeshaft-driven gear
Gears4 forward and 2 reverse

Dimensions

Wheelbase49 inches 124 cm
Length68 inches 172 cm
Width33 inches 83 cm
Height38.75 inches 98 cm
Weight640 lbs 290 kg
Ground clearance7 inches 17 cm
