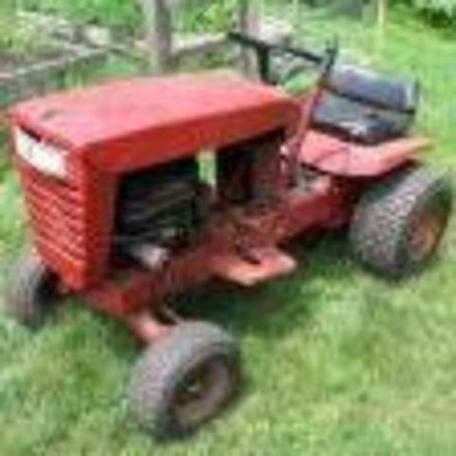

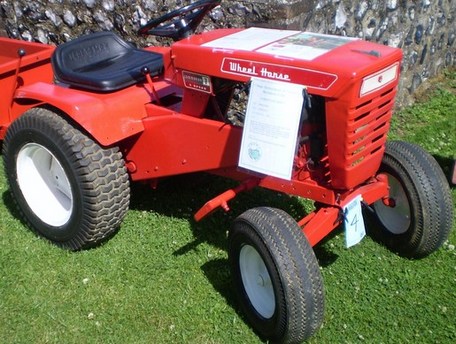

Wheel Horse Commando V7

Production: 1969 - 1970

Production
Manufacturer	Wheel Horse
Type	Garden tractor
Factory	South Bend, Indiana, USA

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Electrical
Ground	negative
Charging system	alternator
Charging amps	3
Battery volts	12
Battery AH	24

Engine Detail
Tecumseh V70
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	245 cc 15 ci
Bore/Stroke	2.75x2.531 inches 70 x 64 mm
Power	7 hp 5.2 kW
Air cleaner	dry
Rated RPM	3600
Starter volts	12

Transmission
Type	belt-driven gear
Gears	3 forward and 1 reverse
Oil capacity	2 qts 1.9 L

Dimensions
Wheelbase	42 inches 106 cm
Length	56 inches 142 cm
Width	32 inches 81 cm
Height (steering wheel)	36.5 inches 92 cm
Height (hood)	31 inches 78 cm
Shiping weight	414 lbs 187 kg
Ground clearance	4.5 inches 11 cm
