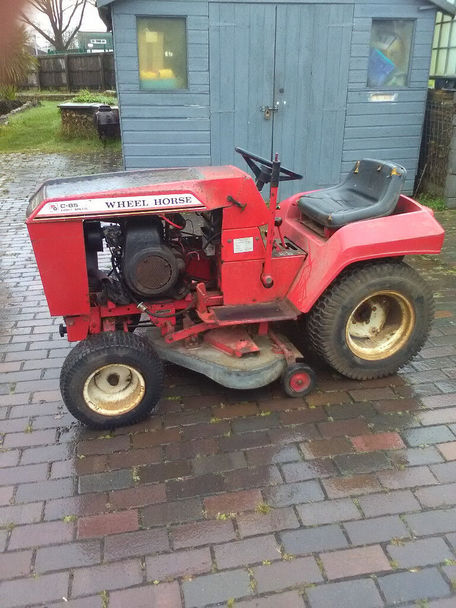

Wheel Horse C-85

Production: 1980 - 1983

Production
Manufacturer:	Wheel Horse
Type:	Garden tractor
Factory:	South Bend, Indiana, USA

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	mechanical band
Cab:	Open operator station.
Transmission:	6-speed gear

Capacity
Fuel:	3 gal 11.4 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	manual

C-85 Serial Numbers
Location:	Serial number plate below dash. Model codes in parentheses.
1980: (01-08K801) 1981: (01-08K802) 1982: (01-08K803) 1983: (11-08K801)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	15

Engine Detail
Kohler K181S
gasoline
1-cylinder
air-cooled
Displacement:	304 cc 18.6 ci
Bore/Stroke:	2.94x2.75 inches 75 x 70 mm
Power:	8 hp 6.0 kW
Air cleaner:	dry element
Rated RPM:	3600
Starter volts:	12
Sparkplug:	Champion J-8
Sparkplug gap:	0.025 inches 0.635 mm
Point gap:	0.020 inches 0.508 mm

Transmission
Manufacturer:	Wheel Horse
Type:	belt-driven gear
Gears:	6 forward and 2 reverse
Oil capacity:	2 qts 1.9 L

Dimensions
Wheelbase:	45.5 inches 115 cm
Length:	69 inches 175 cm
Width:	36 inches 91 cm
Height:	41 inches 104 cm
Shipping:	540 lbs 244 kg
